DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanAEN110F1

Broan Bathroom Exhaust Fan. Model AEN50, AEN80, AEN110. Plug-in, permanently lubricated motor for continuous operation; Dynamically balanced centrifugal blower wheel; Corrosion-resistant 26 gauge galvanized steel housing; U.L. Listed for use over bathtubs and showers with GFCI. material: Galvanized steel housing, polymeric grille and duct connector

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAEN110F1.pdfData sheet

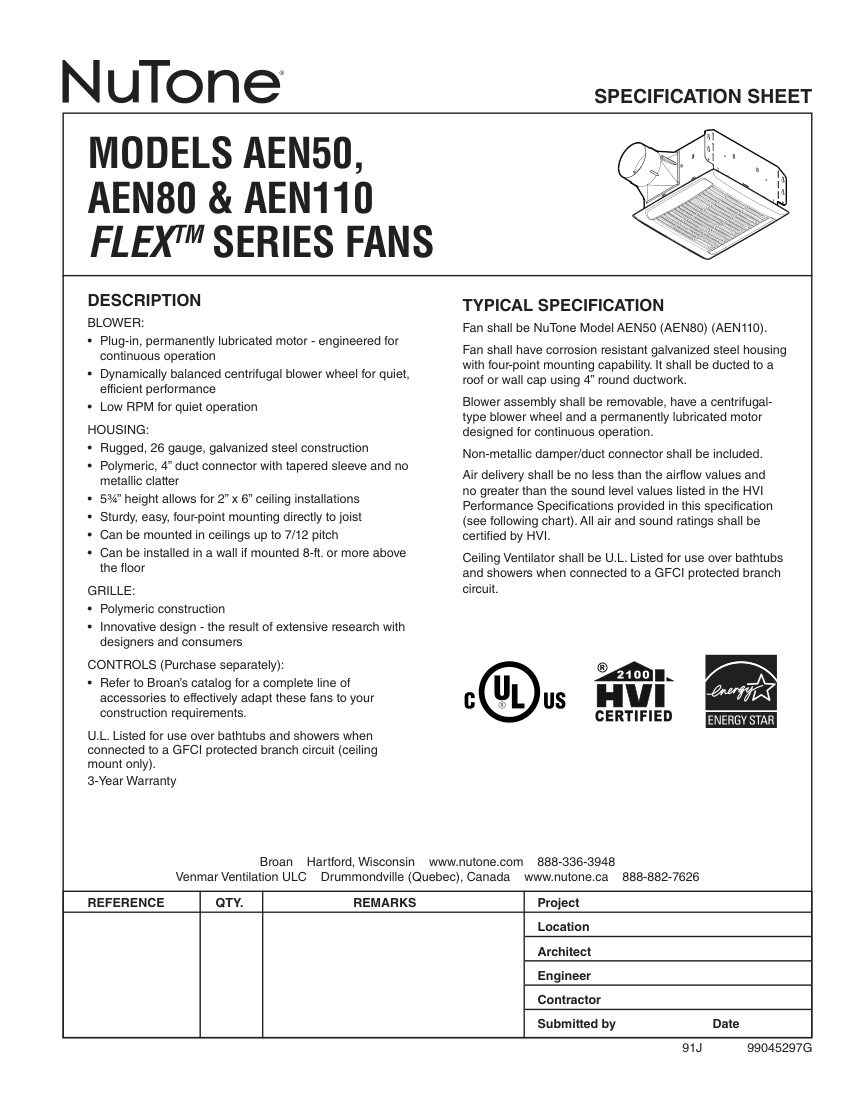

Broan AEN110F1 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
AEN110F1
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAEN110F1
DescriptionBroan Bathroom Exhaust Fan. Model AEN50, AEN80, AEN110. Plug-in, permanently lubricated motor for continuous operation; Dynamically balanced centrifugal blower wheel; Corrosion-resistant 26 gauge galvanized steel housing; U.L. Listed for use over bathtubs and showers with GFCI. material: Galvanized steel housing, polymeric grille and duct connector
Connection size4" round ductwork
End connectionPolymeric duct connector with tapered sleeve
Pressure RatingRated at 0.1 in. H2O static pressure
Flow Rate50, 80, or 110 CFM
MountingFour-point mounting to joist, ceiling or wall (8-ft+ heigh

Also cataloged as: AEN80F1
