BroanAEN80L

Broan Ceiling Ventilation Fan with LED Light (Ventilation Fan). Model AEN80L. 80 CFM airflow at 0.1 in. H2O static pressure; 0.8 Sones sound level; 11-Watt integrated LED light with 3500K color temperature and 800 lumens; 26.9 Watts total connected load. material: Galvanized steel housing, polymeric grille and duct connector

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAEN80L.pdfData sheet

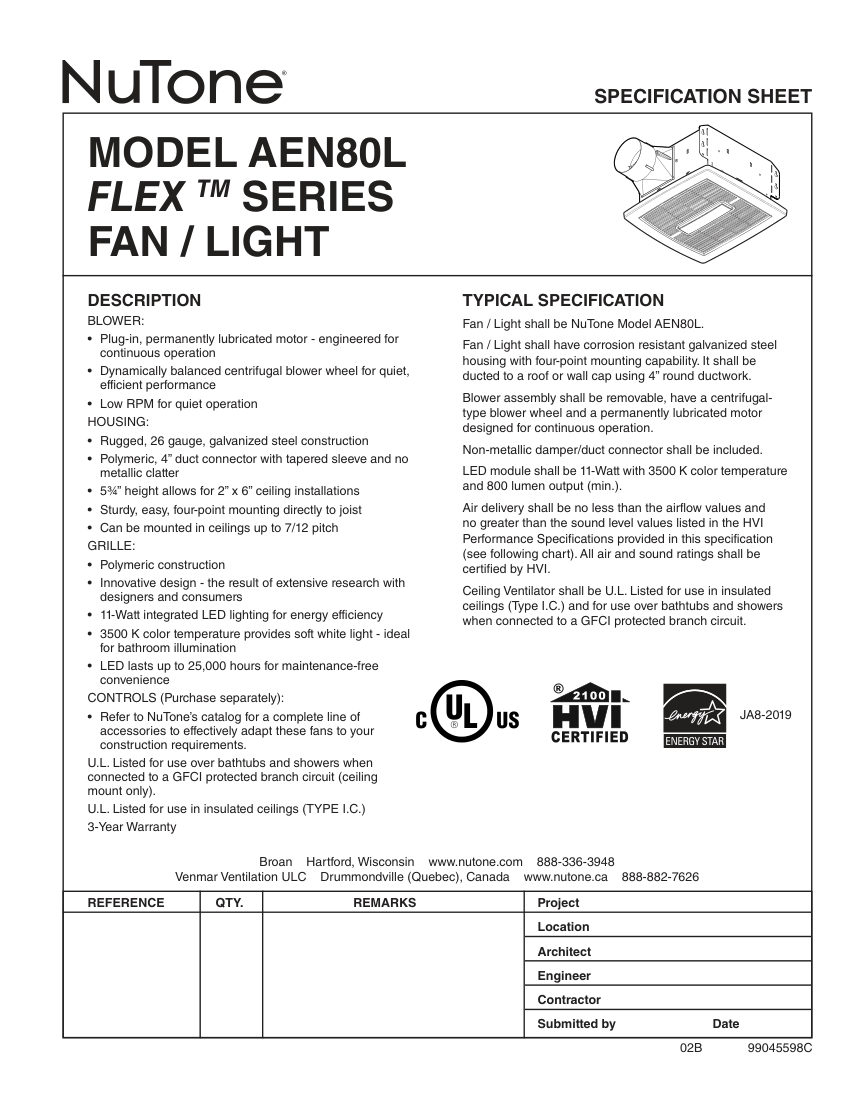

Broan AEN80L cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
AEN80L
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAEN80L
DescriptionBroan Ceiling Ventilation Fan with LED Light (Ventilation Fan). Model AEN80L. 80 CFM airflow at 0.1 in. H2O static pressure; 0.8 Sones sound level; 11-Watt integrated LED light with 3500K color temperature and 800 lumens; 26.9 Watts total connected load. material: Galvanized steel housing, polymeric grille and duct connector
Connection size4" round ductwork
End connectionPolymeric duct connector with tapered sleeve
Pressure Rating0.1 in. H2O (HVI certified)
Flow Rate80 CFM
MountingFour-point mounting to joist, ceiling up to 7/12 pitch.
