DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanBroanAER110L

Broan Ceiling Fan / Light (Broan Roomside Series). Model AER110L. 11-Watt integrated LED with 3500K color temperature and 800 lumen output; Permanently lubricated plug-in motor for continuous operation; Sound level of 1.0 Sones at 0.1 in. H2O; Shipping weight of 10.0 lbs. material: 26 gauge galvanized steel housing, polymeric grille and duct connector

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAER110L.pdfData sheet

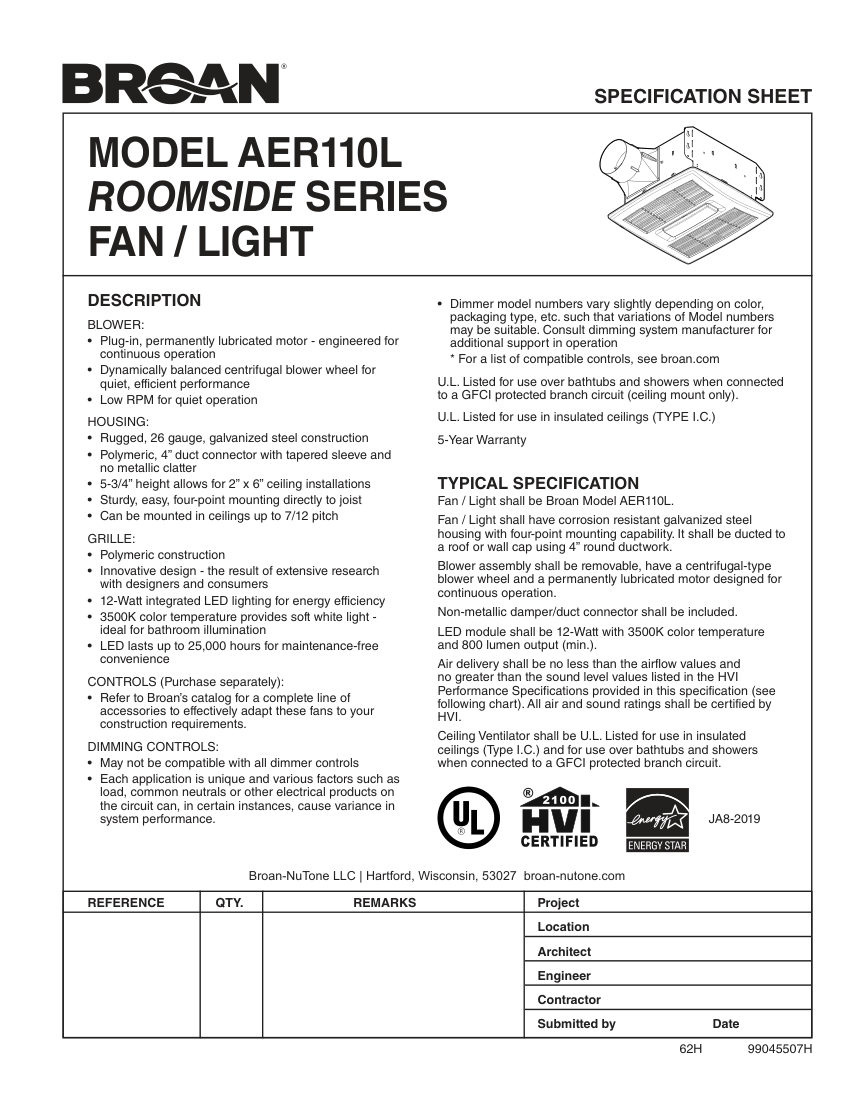

Broan AER110L cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
AER110L
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAER110L
DescriptionBroan Ceiling Fan / Light (Broan Roomside Series). Model AER110L. 11-Watt integrated LED with 3500K color temperature and 800 lumen output; Permanently lubricated plug-in motor for continuous operation; Sound level of 1.0 Sones at 0.1 in. H2O; Shipping weight of 10.0 lbs. material: 26 gauge galvanized steel housing, polymeric grille and duct connector
Connection size4" round duct
End connectionPolymeric duct connector with tapered sleeve
Pressure Rating0.1 in. H2O (HVI certified)
Flow Rate110 CFM at 0.1 in. H2O
MountingFour-point mounting to joist, 5-3/4" height for 2" x 6" ceilings
