BroanAER110LC

Broan Ceiling Ventilation Fan with LED Light (Ventilation Fan). Model AER90LC, AER110LC. 1.0 Sones sound level; 11-Watt LED light with 3000K color temperature; 800 lumen minimum light output; Permanently lubricated motor for continuous operation. material: Galvanized steel housing, polymeric grille and duct connector

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAER110LC.pdfData sheet

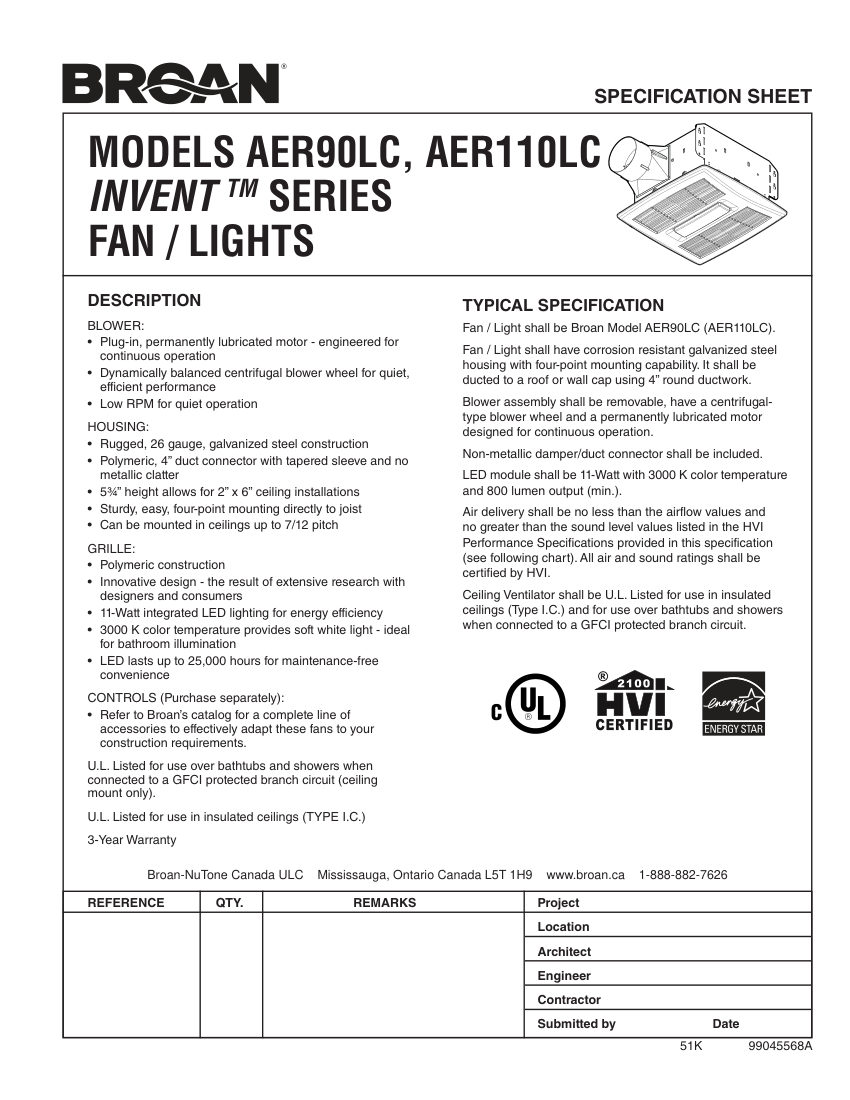

Broan AER110LC cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
AER110LC
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAER110LC
DescriptionBroan Ceiling Ventilation Fan with LED Light (Ventilation Fan). Model AER90LC, AER110LC. 1.0 Sones sound level; 11-Watt LED light with 3000K color temperature; 800 lumen minimum light output; Permanently lubricated motor for continuous operation. material: Galvanized steel housing, polymeric grille and duct connector
Connection size4" round ductwork
End connectionPolymeric duct connector with tapered sleeve
Pressure Rating0.1 in. H2O (HVI rated)
Flow Rate90 CFM (AER90LC), 110 CFM (AER110LC)
FinishGalvanized steel.

Also cataloged as: AER90LC
