DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanBroanAER110S

Broan Humidity Sensing Fan (Invent Series). Model AE80H, AER110S. Humidity control turns fan ON for rapid/moderate increase or above set-point (50%-80% RH); Two wire manual operation for odor control via wall switch cycling; Remains ON for user-adjustable 5 to 60 minutes after conditions stabilize; Plug-in, permanently lubricated motor for continuous operation. material: 26 gauge galvanized steel, polymeric

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAER110S.pdfData sheet

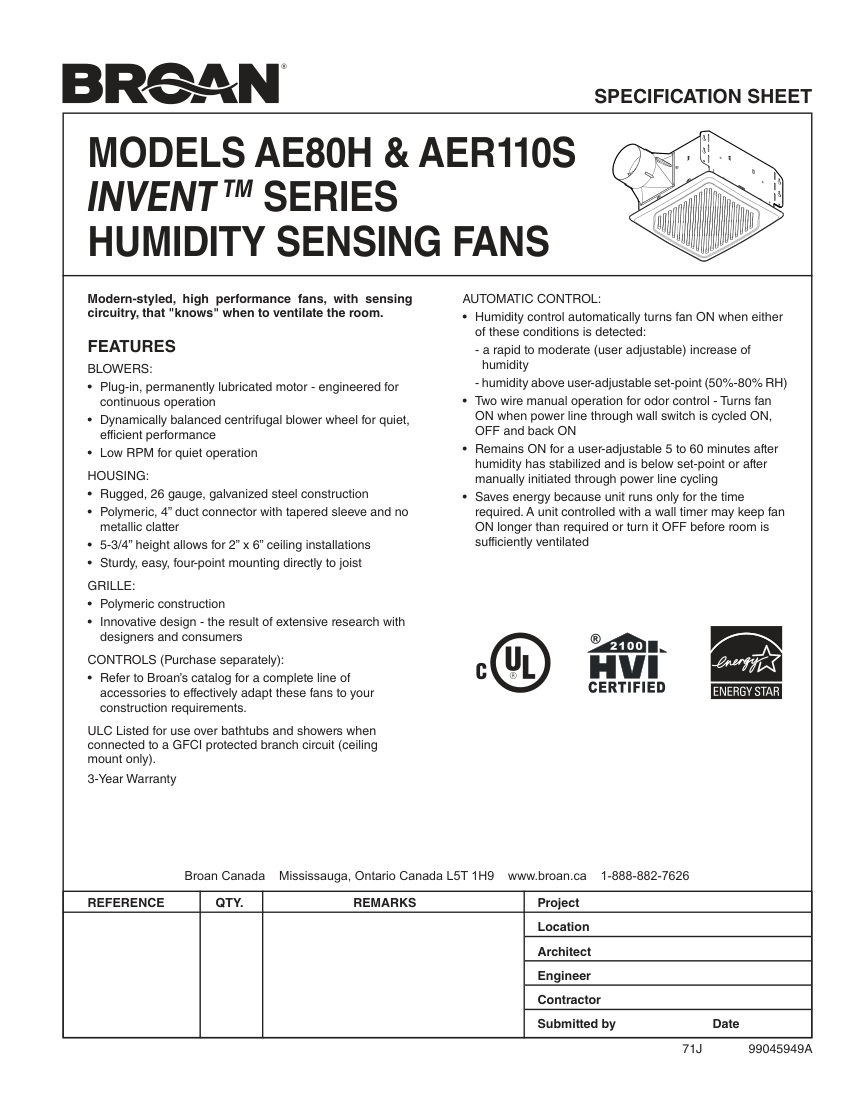

Broan AER110S cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
AER110S
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAER110S
DescriptionBroan Humidity Sensing Fan (Invent Series). Model AE80H, AER110S. Humidity control turns fan ON for rapid/moderate increase or above set-point (50%-80% RH); Two wire manual operation for odor control via wall switch cycling; Remains ON for user-adjustable 5 to 60 minutes after conditions stabilize; Plug-in, permanently lubricated motor for continuous operation. material: 26 gauge galvanized steel, polymeric
Connection size4"
End connectionDuct connector with tapered sleeve
Flow Rate80 CFM (AE80H), 110 CFM (AER110S)
MountingFour-point mounting directly to joist
Dimensions5-3/4" heig
