BroanAERN110DCSL

Broan Humidity Sensing Ventilation Fan Light (Flex DC Series). Model AERN110DCSL. 110 CFM airflow at 0.1 in. H2O static pressure; 0.9 Sones sound level; 11-Watt integrated LED lighting (3500K); Humidity sensing with user-adjustable set-point (50%-80% RH). material: 26 gauge galvanized steel housing, polymeric grille and damper

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAERN110DCSL.pdfData sheet

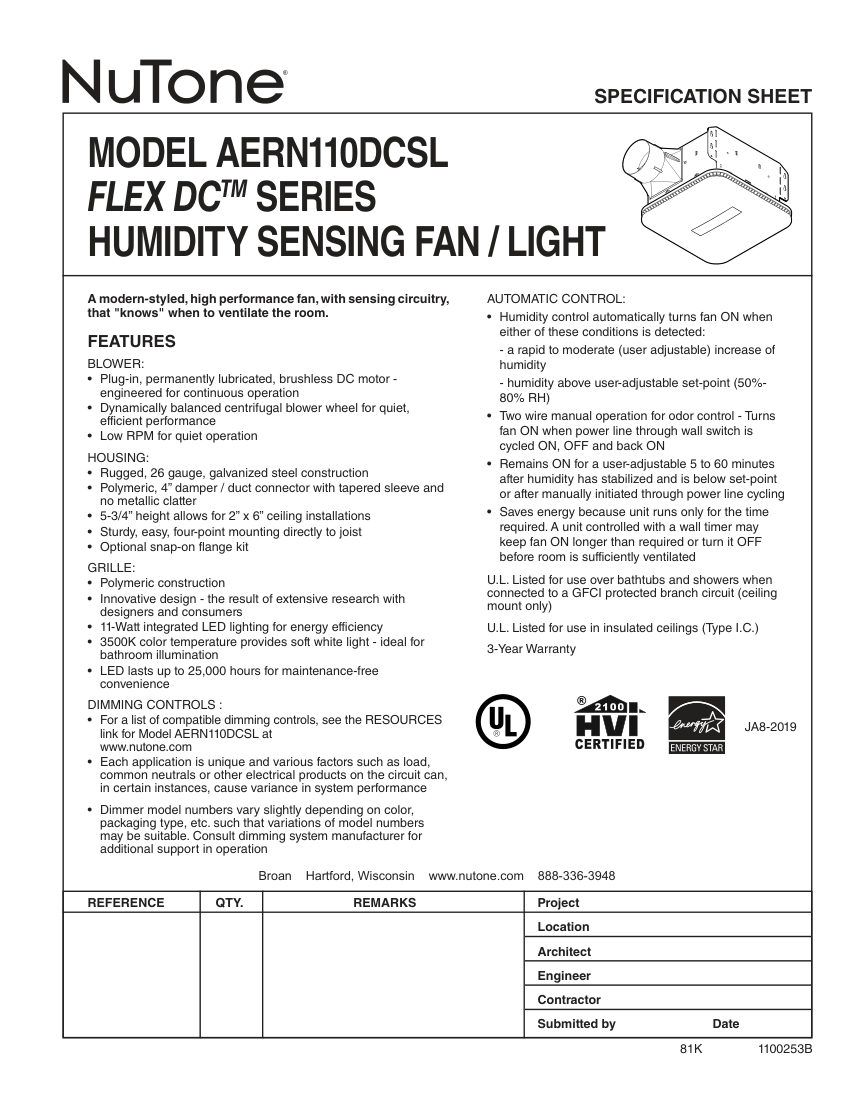

Broan AERN110DCSL cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
AERN110DCSL
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAERN110DCSL
DescriptionBroan Humidity Sensing Ventilation Fan Light (Flex DC Series). Model AERN110DCSL. 110 CFM airflow at 0.1 in. H2O static pressure; 0.9 Sones sound level; 11-Watt integrated LED lighting (3500K); Humidity sensing with user-adjustable set-point (50%-80% RH). material: 26 gauge galvanized steel housing, polymeric grille and damper
Connection size4" damper / duct connector
End connectionPlug-in
Pressure Rating0.1 in. H2O (HVI rated)
Flow Rate110 CFM
MountingCeiling mount, 2" x 6" joist, four-point mounting.
