BroanAERN110LC

Broan Ceiling Ventilation Fan with LED Light (Ceiling Ventilation Fan). Model AERN90LC, AERN110LC. 11-Watt LED module with 3000K color temperature and 800 lumen output; 1.0 Sones sound level at 0.1 in. H2O static pressure; Permanently lubricated motor designed for continuous operation; Corrosion-resistant 26 gauge galvanized steel housing. material: Galvanized steel housing, polymeric grille and duct connector

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAERN110LC.pdfData sheet

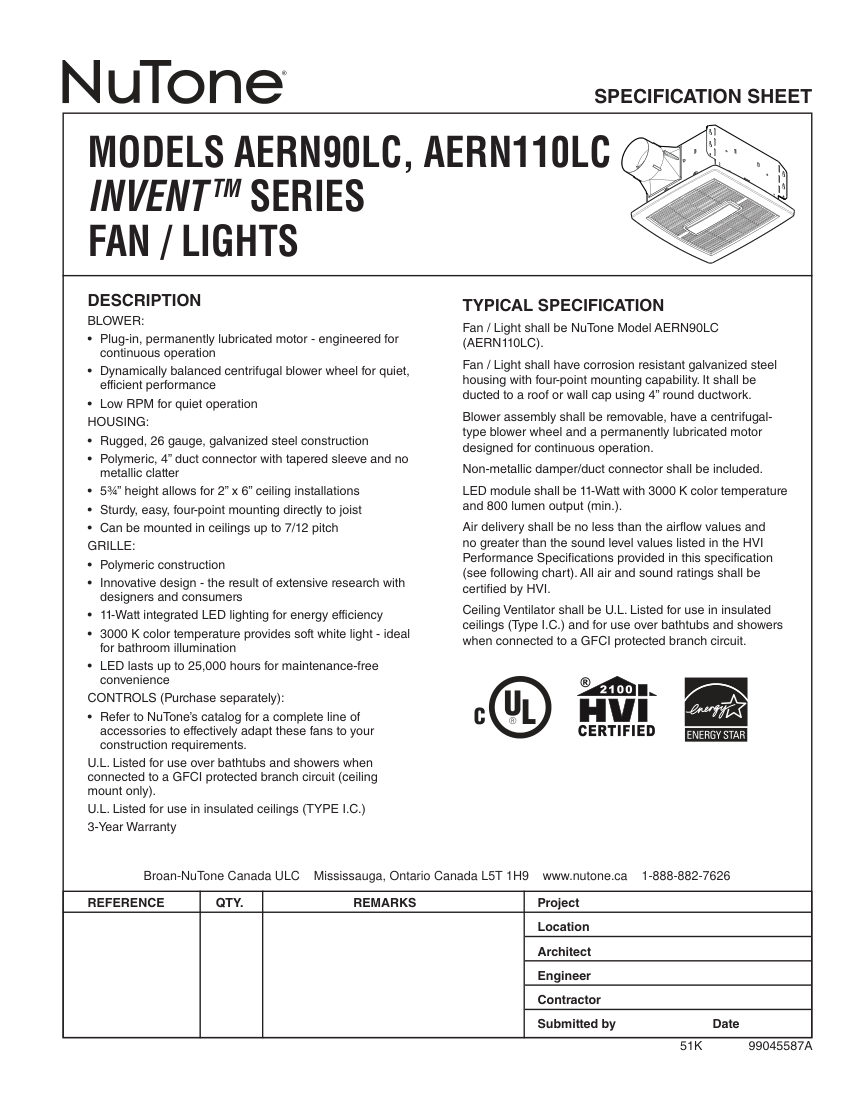

Broan AERN110LC cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
AERN110LC
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAERN110LC
DescriptionBroan Ceiling Ventilation Fan with LED Light (Ceiling Ventilation Fan). Model AERN90LC, AERN110LC. 11-Watt LED module with 3000K color temperature and 800 lumen output; 1.0 Sones sound level at 0.1 in. H2O static pressure; Permanently lubricated motor designed for continuous operation; Corrosion-resistant 26 gauge galvanized steel housing. material: Galvanized steel housing, polymeric grille and duct connector
Connection size4" round ductwork
End connectionPolymeric 4" duct connector with tapered sleeve
Pressure Rating0.1 in. H2O (HVI rated)
Flow Rate90 CFM (AERN90LC), 110 CFM (AERN110

Also cataloged as: AERN90LC
