DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanAERN110LTK

Broan Decorative Ventilation Fan with LED Light (Roomside Series). Model AERN110LTK. 110 CFM airflow at 0.1 in. H2O static pressure; 1.5 sones sound level; 16-Watt integrated LED with 3500K color temperature and 1100 lumens; Plug-in, permanently lubricated motor for continuous operation. material: Galvanized steel housing, acrylic lens

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAERN110LTK.pdfData sheet

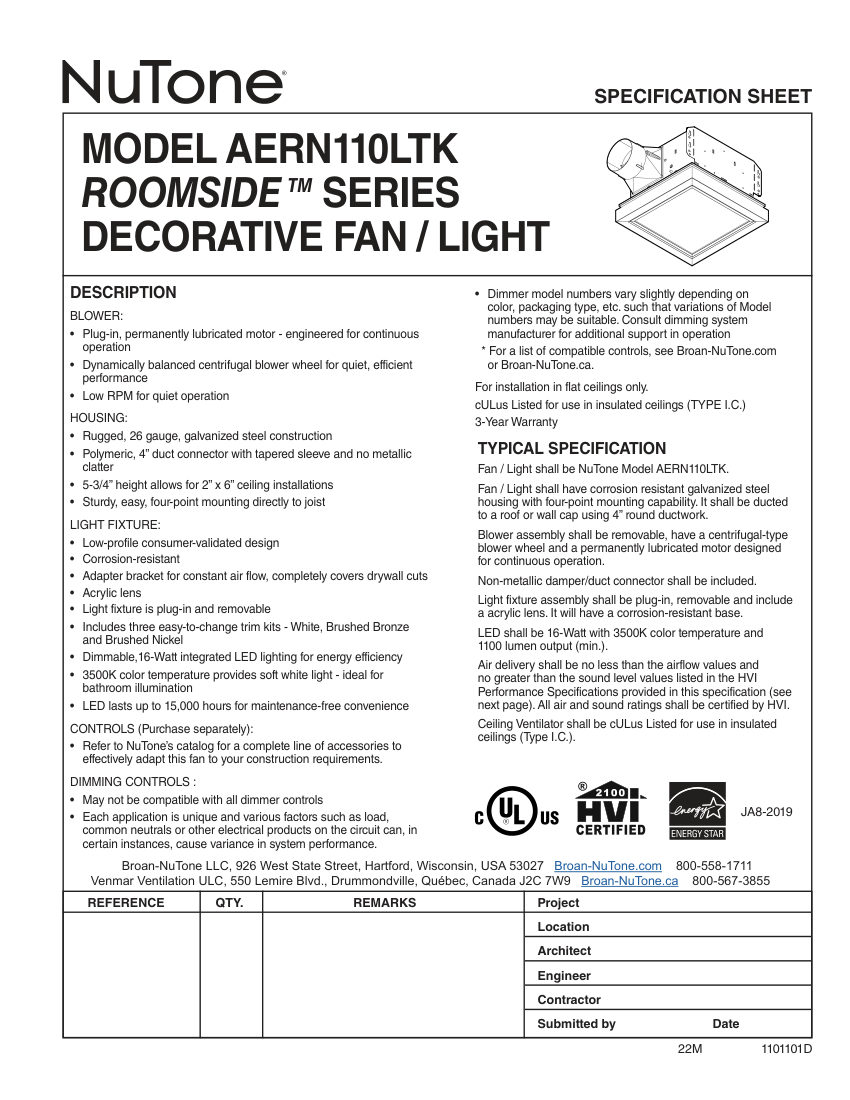

Broan AERN110LTK cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
AERN110LTK
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAERN110LTK
DescriptionBroan Decorative Ventilation Fan with LED Light (Roomside Series). Model AERN110LTK. 110 CFM airflow at 0.1 in. H2O static pressure; 1.5 sones sound level; 16-Watt integrated LED with 3500K color temperature and 1100 lumens; Plug-in, permanently lubricated motor for continuous operation. material: Galvanized steel housing, acrylic lens
Connection size4" round duct
End connectionPolymeric duct connector with tapered sleeve
Pressure Rating0.1 in. H2O (HVI rated)
Flow Rate110 CFM
FinishWhite, Brushed Bronze, Brushed Nickel (trim kits included).
