BroanAERN110SD
Broan Humidity Sensing Ventilation Fan (Roomside Series). Model AERN110SD. 1.0 Sones sound level; 23.4 Watts power consumption; 4.7 CFM/W efficacy; Humidity set-point adjustable 50%-80% RH. material: 26 gauge galvanized steel housing, polymeric grille and duct connector
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- AERN110SD
- Product type
- Ventilation
- MasterFormat
- 23

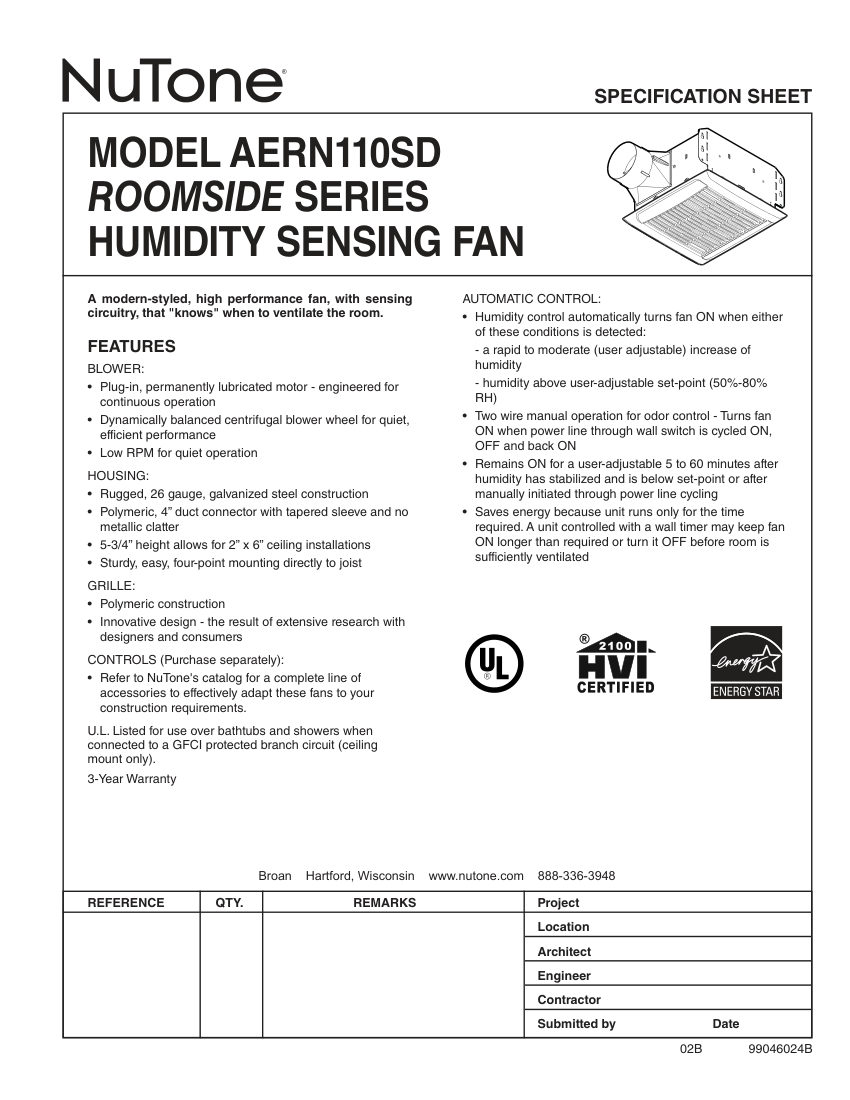

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | AERN110SD |
|---|---|
| Description | Broan Humidity Sensing Ventilation Fan (Roomside Series). Model AERN110SD. 1.0 Sones sound level; 23.4 Watts power consumption; 4.7 CFM/W efficacy; Humidity set-point adjustable 50%-80% RH. material: 26 gauge galvanized steel housing, polymeric grille and duct connector |
| Connection size | 4" duct connector |
| End connection | Plug-in |
| Pressure Rating | 0.1 in. w.g. (HVI rated), 0.25 in. w.g. (performance chart) |
| Flow Rate | 110 CFM at 0.1 in. w.g. |
| Mounting | Four-point mounting directly to joist, 5-3/4" height for 2" x 6" ceiling. |
