DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanAERN50110DCKC

Broan Roomside Series Fan (Ventilation Fan). Model AERN50110DCKC. Selectable airflow settings of 50, 80, or 110 CFM; Brushless DC motor with permanently lubricated bearings; Sound level as low as < 0.3 Sones at 50 CFM setting; Acceptable for use in insulated ceilings (Type I.C.). material: Galvanized steel housing, polymeric grille

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAERN50110DCKC.pdfData sheet

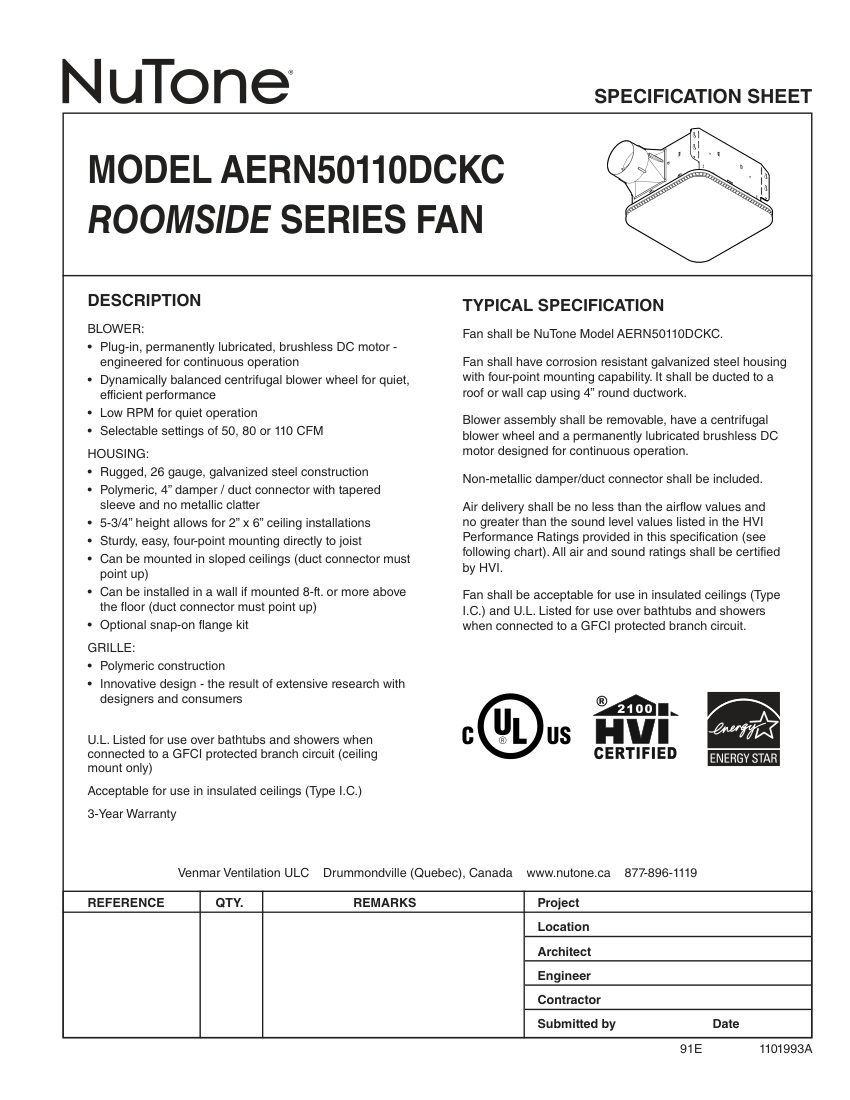

Broan AERN50110DCKC cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
AERN50110DCKC
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAERN50110DCKC
DescriptionBroan Roomside Series Fan (Ventilation Fan). Model AERN50110DCKC. Selectable airflow settings of 50, 80, or 110 CFM; Brushless DC motor with permanently lubricated bearings; Sound level as low as < 0.3 Sones at 50 CFM setting; Acceptable for use in insulated ceilings (Type I.C.). material: Galvanized steel housing, polymeric grille
Connection size4" round ductwork
End connectionPolymeric damper/duct connector
Flow Rate50, 80, or 110 CFM
MountingFour-point mounting to joist, ceiling or wall
Dimensions5-3/4" height.
