BroanAERN70C

Broan Ceiling Ventilation Fan (Ventilation Fan). Model AERN70C, AERN90C, AERN110C. 70 CFM airflow at 0.8 Sones (AERN70C); 90 CFM airflow at 1.0 Sones (AERN90C); 110 CFM airflow at 1.0 Sones (AERN110C); Permanently lubricated motor for continuous operation. material: Galvanized steel housing, polymeric grille and duct connector

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAERN70C.pdfData sheet

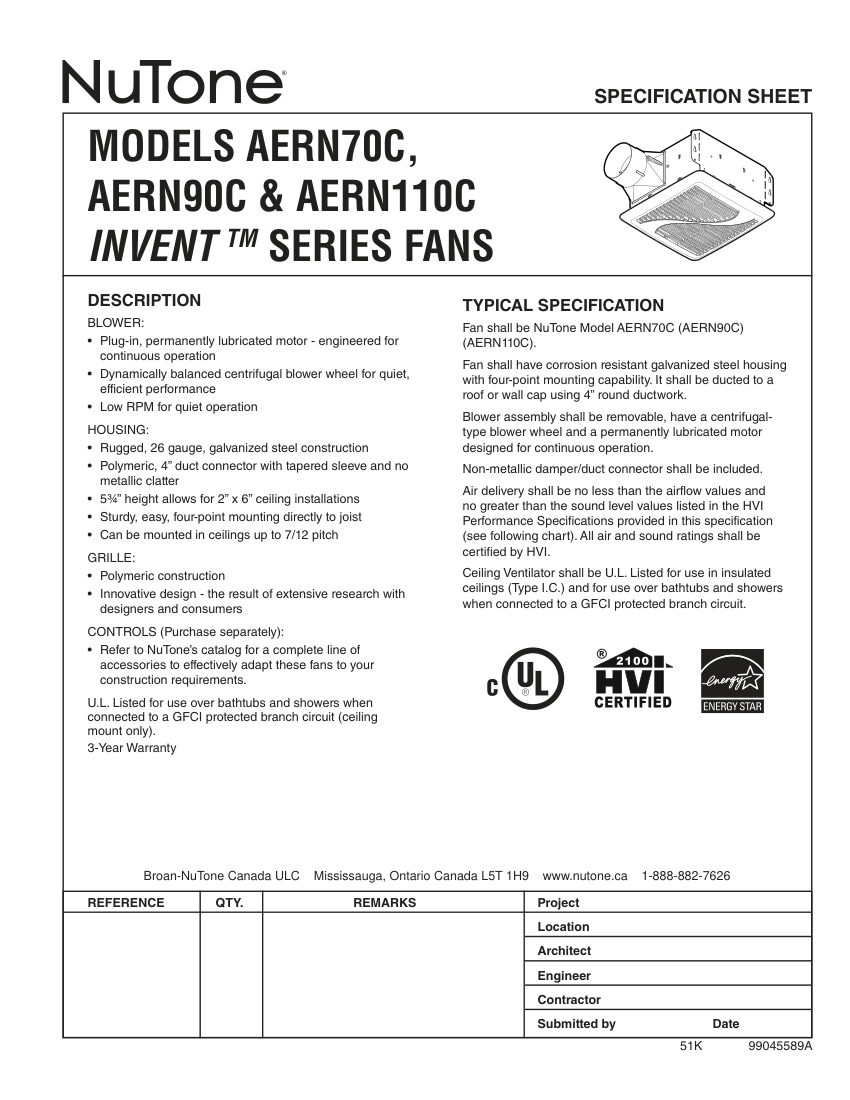

Broan AERN70C cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
AERN70C
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAERN70C
DescriptionBroan Ceiling Ventilation Fan (Ventilation Fan). Model AERN70C, AERN90C, AERN110C. 70 CFM airflow at 0.8 Sones (AERN70C); 90 CFM airflow at 1.0 Sones (AERN90C); 110 CFM airflow at 1.0 Sones (AERN110C); Permanently lubricated motor for continuous operation. material: Galvanized steel housing, polymeric grille and duct connector
Connection size4" round ductwork
End connectionPolymeric duct connector with tapered sleeve
Pressure RatingRated at 0.1 in. H2O static pressure
Flow Rate70 CFM (AERN70C), 90 CFM (AERN90C), 110 CFM (AERN110C)
FinishGalvanized steel.

Also cataloged as: AERN90C, AERN110C
