BroanAERN80KC
Broan Ceiling Ventilation Fan (Ventilation Fan). Model AERN80KC. 80 CFM airflow at 0.1 in. H2O static pressure; 0.8 sones sound level; 26.9 watts power consumption; Permanently lubricated plug-in motor. material: Galvanized steel housing, polymeric grille
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- AERN80KC
- Product type
- Ventilation
- MasterFormat
- 23

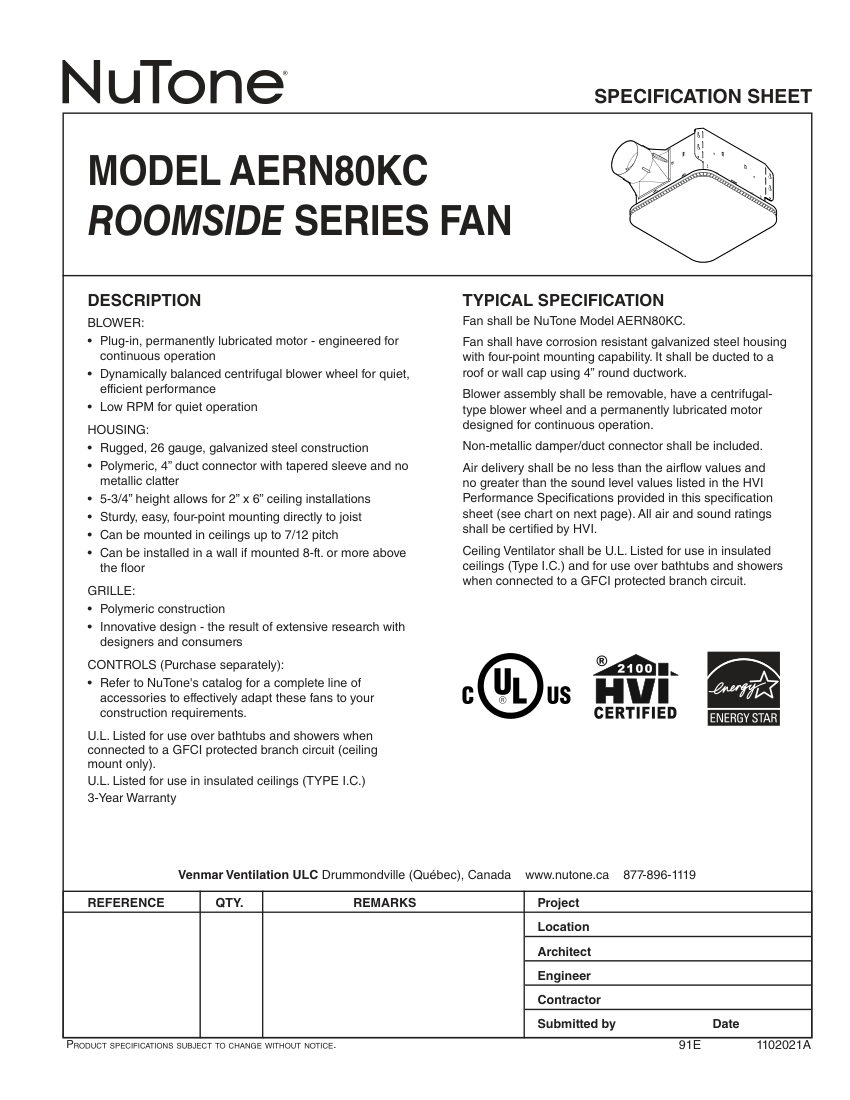

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | AERN80KC |
|---|---|
| Description | Broan Ceiling Ventilation Fan (Ventilation Fan). Model AERN80KC. 80 CFM airflow at 0.1 in. H2O static pressure; 0.8 sones sound level; 26.9 watts power consumption; Permanently lubricated plug-in motor. material: Galvanized steel housing, polymeric grille |
| Connection size | 4" round duct |
| End connection | Polymeric duct connector with tapered sleeve |
| Pressure Rating | 0.1 in. H2O (HVI rated) |
| Flow Rate | 80 CFM |
| Mounting | Four-point ceiling mount (2" x 6" joists), up to 7/12 pitch. |
