BroanAERN80LKAERN80LK

Broan Ceiling Ventilator with Integrated LED Light (Bathroom Fan / Light). Model AERN80LK. 80 CFM airflow at 0.1 in. H2O static pressure; 0.7 Sones sound power level; 11-Watt integrated LED with 800 lumens min output; 3500K color temperature LED. material: Galvanized steel housing, polymeric grille and duct connector

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAERN80LK.pdfData sheet

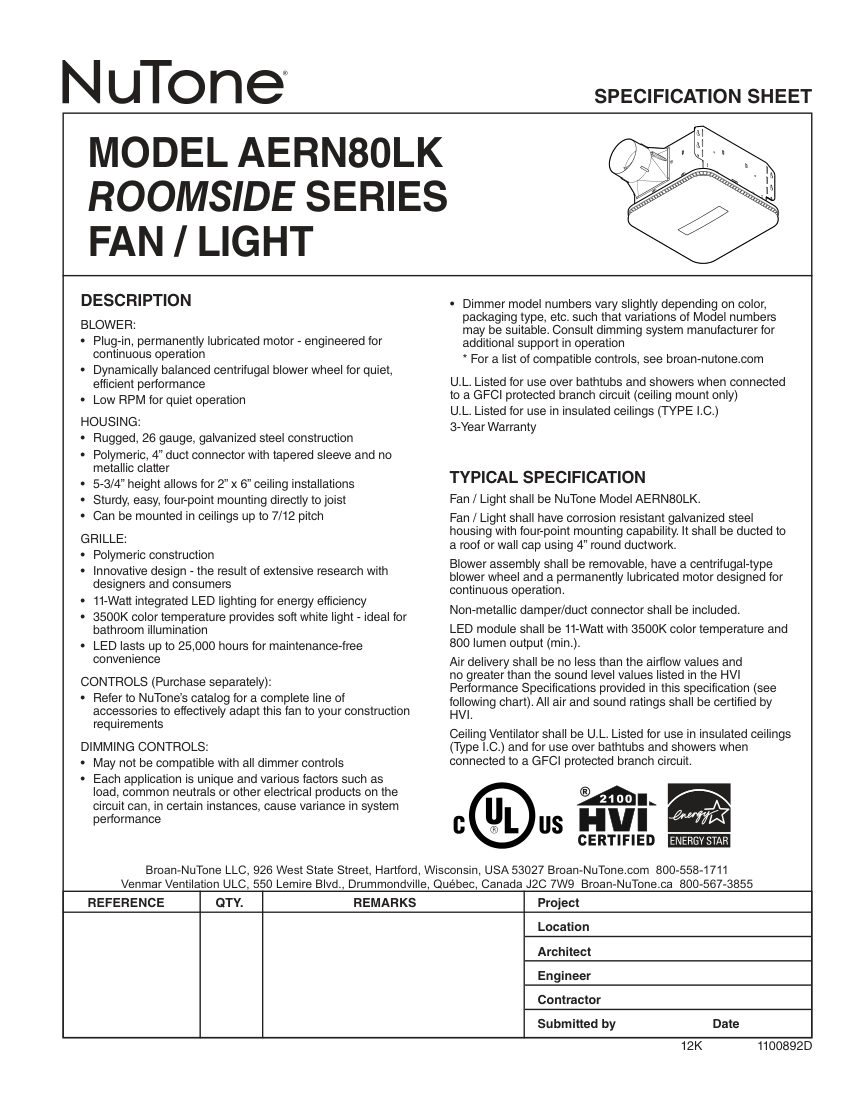

Broan AERN80LK cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
AERN80LK
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAERN80LK
DescriptionBroan Ceiling Ventilator with Integrated LED Light (Bathroom Fan / Light). Model AERN80LK. 80 CFM airflow at 0.1 in. H2O static pressure; 0.7 Sones sound power level; 11-Watt integrated LED with 800 lumens min output; 3500K color temperature LED. material: Galvanized steel housing, polymeric grille and duct connector
Connection size4" round duct
End connectionPolymeric duct connector with tapered sleeve
Pressure RatingHVI certified at 0.1 in. H2O
Flow Rate80 CFM
MountingFour-point mounting to joist, ceiling pitch up to 7/12.
