DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanAN110L

Broan Ceiling Exhaust Fan with Light (Bathroom Exhaust Fan). Model AN80L, AN110L. 120V, 60Hz, 1.2A total connected load; 100W max A19 incandescent or equivalent bulb (M.O.L. 4.4" or less); Shipping weight 10.0 lbs; 3-Year Warranty. material: Galvanized steel housing, polymeric grille

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAN110L.pdfData sheet

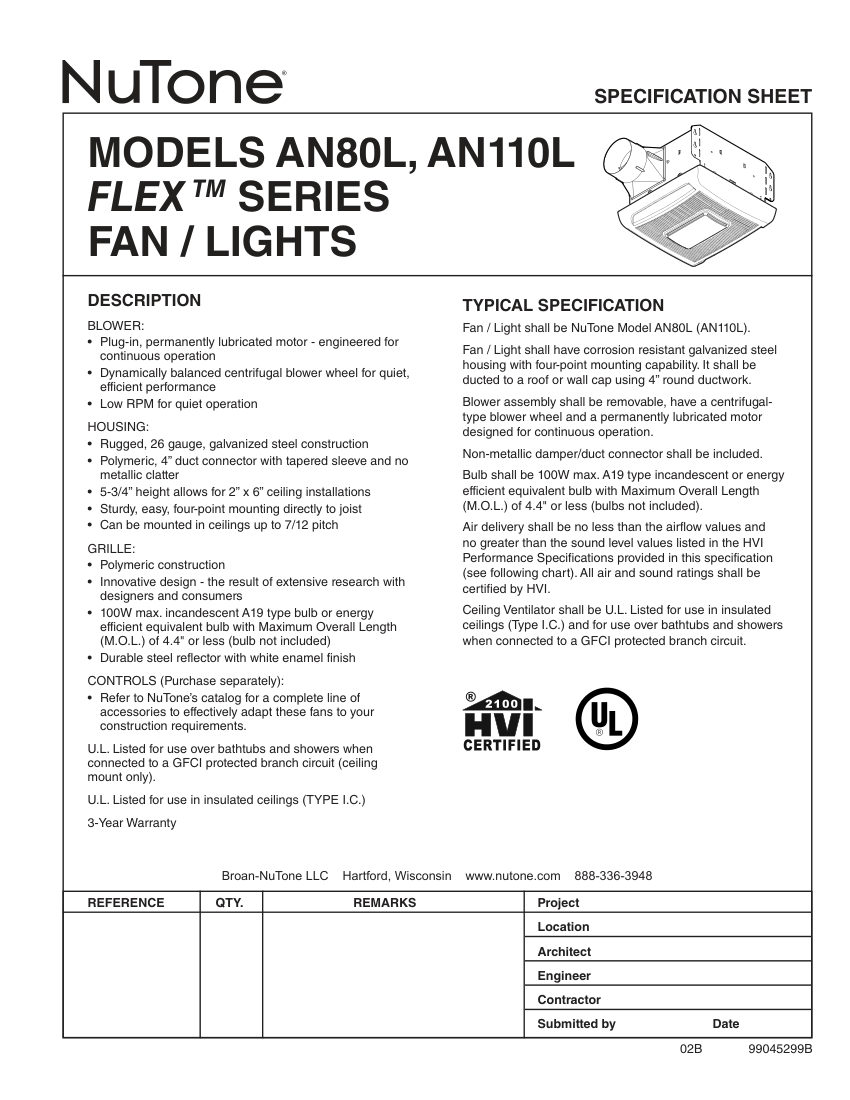

Broan AN110L cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
AN110L
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAN110L
DescriptionBroan Ceiling Exhaust Fan with Light (Bathroom Exhaust Fan). Model AN80L, AN110L. 120V, 60Hz, 1.2A total connected load; 100W max A19 incandescent or equivalent bulb (M.O.L. 4.4" or less); Shipping weight 10.0 lbs; 3-Year Warranty. material: Galvanized steel housing, polymeric grille
Connection size4" round duct
End connectionPolymeric duct connector with tapered sleeve
Pressure Rating0.1 in H2O (80/110 CFM), 0.25 in H2O (68/92 CFM)
Flow Rate80 CFM (AN80L), 110 CFM (AN110L)
FinishWhite enamel reflector.

Also cataloged as: AN80L
