Broan**DISCONTINUED** NuTone®80 CFM Ventilation Fan, 2.0 SonesAN80C

Broan Ceiling Ventilation Fan (NuTone Flex Series). Model AN80C, AN110C. 80 CFM airflow at 2.0 Sones (AN80C); 110 CFM airflow at 3.0 Sones (AN110C); Permanently lubricated motor for continuous operation; Corrosion-resistant 26 gauge galvanized steel housing. material: Galvanized steel housing, polymeric grille

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFAN80C.pdfData sheet

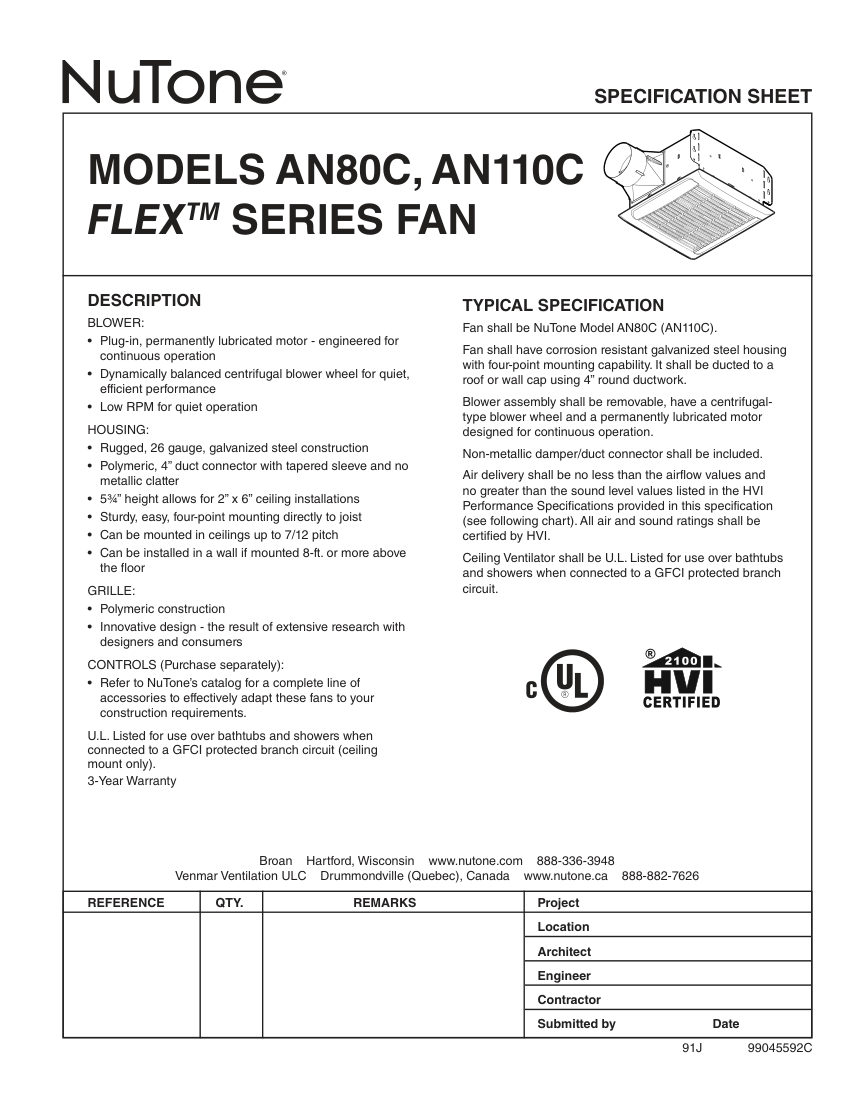

Broan AN80C cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
AN80C
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberAN80C
DescriptionBroan Ceiling Ventilation Fan (NuTone Flex Series). Model AN80C, AN110C. 80 CFM airflow at 2.0 Sones (AN80C); 110 CFM airflow at 3.0 Sones (AN110C); Permanently lubricated motor for continuous operation; Corrosion-resistant 26 gauge galvanized steel housing. material: Galvanized steel housing, polymeric grille
Connection size4" round ductwork
End connectionPolymeric duct connector with tapered sleeve
Pressure Rating0.1 in H2O (HVI rated)
Flow Rate80 CFM (AN80C), 110 CFM (AN110C)
FinishGalvanized.
