BroanBroan® Roomside Series 80 CFM 0.8 Sones Ventilation Fan LightAR80L
Broan Ceiling Ventilation Fan with Light (Ventilation). Model AR80L. 80 CFM airflow at 0.1 in H2O static pressure; 0.8 Sones sound level; 42.3 Watts power consumption; 100W max A19 bulb compatible (M.O.L. 4.4" or less). material: Galvanized steel housing, polymeric grille
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- AR80L
- Product type
- Ventilation
- MasterFormat
- 23

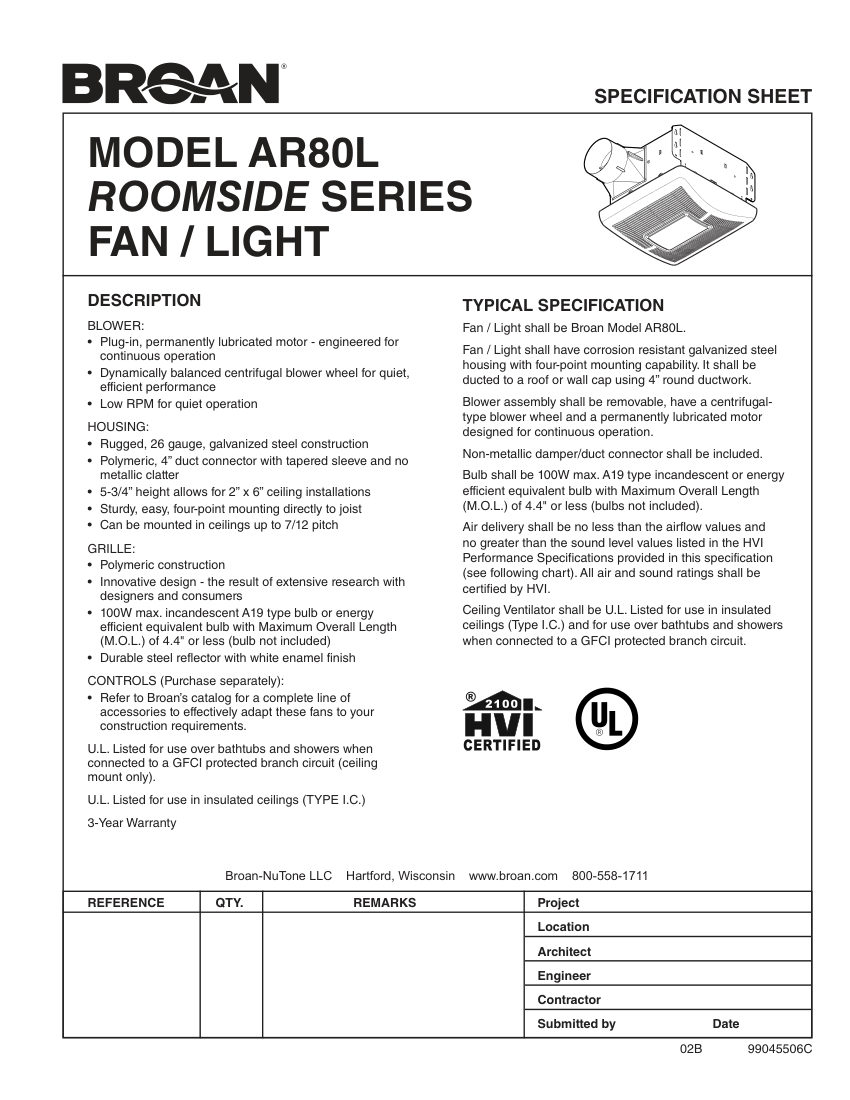

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | AR80L |
|---|---|
| Description | Broan Ceiling Ventilation Fan with Light (Ventilation). Model AR80L. 80 CFM airflow at 0.1 in H2O static pressure; 0.8 Sones sound level; 42.3 Watts power consumption; 100W max A19 bulb compatible (M.O.L. 4.4" or less). material: Galvanized steel housing, polymeric grille |
| Connection size | 4" round ductwork |
| End connection | Polymeric duct connector with tapered sleeve |
| Pressure Rating | 0.1 in H2O (80 CFM), 0.25 in H2O (68 CFM) |
| Flow Rate | 80 CFM |
| Finish | White enamel reflector. |
