BroanARW80L

Broan Ceiling Ventilation Fan with Light (Ventilation Fan). Model ARW80L. 80 CFM airflow at 0.1 in H2O static pressure; 2.0 Sones sound power level; 11-Watt integrated LED light with 3500K color temperature; 800 lumen minimum light output. material: Galvanized steel housing, polymeric grille and duct connector

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFARW80L.pdfData sheet

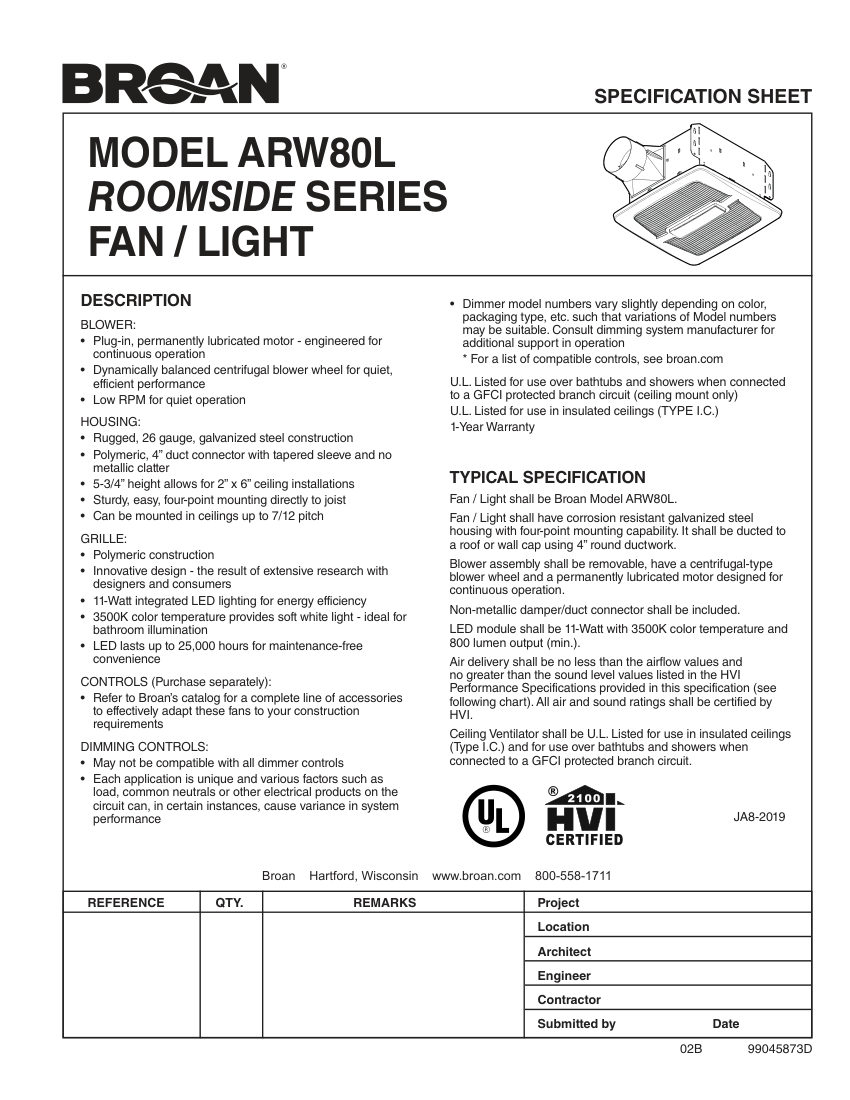

Broan ARW80L cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
ARW80L
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberARW80L
DescriptionBroan Ceiling Ventilation Fan with Light (Ventilation Fan). Model ARW80L. 80 CFM airflow at 0.1 in H2O static pressure; 2.0 Sones sound power level; 11-Watt integrated LED light with 3500K color temperature; 800 lumen minimum light output. material: Galvanized steel housing, polymeric grille and duct connector
Connection size4" round duct
End connectionPolymeric duct connector with tapered sleeve
Pressure Rating0.1 in H2O (HVI rated)
Flow Rate80 CFM at 0.1 in H2O
MountingFour-point mounting to joist, ceiling pitch up to 7/12.
