BroanBroan® 118 Pint DehumidifierB120DHV
Broan Commercial Dehumidifier (Dehumidifier). Model B120DHV. Water Removal: 118 Pints/Day @ 80°F and 60%RH
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- B120DHV
- Product type
- Ventilation
- MasterFormat
- 23

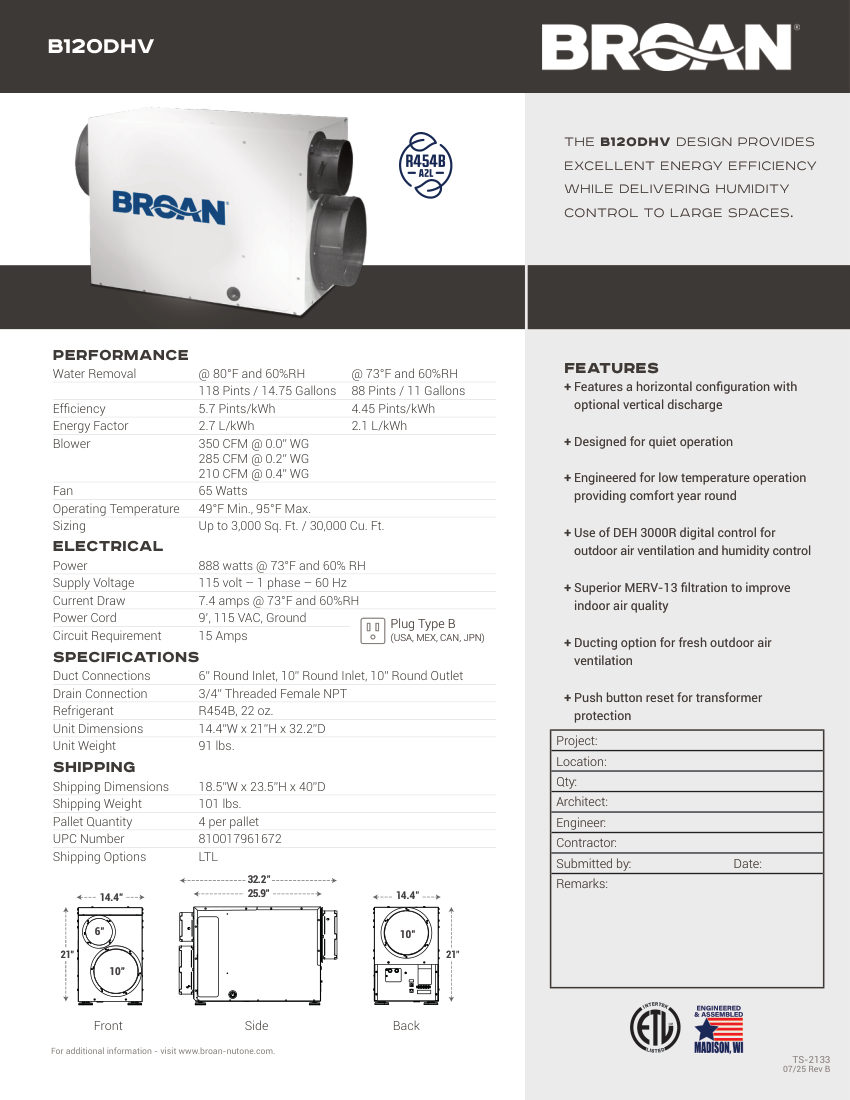

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | B120DHV |
|---|---|
| Description | Broan Commercial Dehumidifier (Dehumidifier). Model B120DHV. Water Removal: 118 Pints/Day @ 80°F and 60%RH |
| Energy Factor | 2.7 L/kWh |
| Sizing | Up to 3,000 Sq. Ft. / 30,000 Cu. Ft. |
| Refrigerant | R454B, 22 oz.. connectionSize: 6" Round Inlet, 10" Round Inlet, 10" Round Outlet, 3/4" Threaded Female NPT Drain |
| Flow Rate | 350 CFM @ 0.0" WG |
| Mounting | Horizontal configuration with optional vertical discharge |
| Dimensions | 14.4"W x 21"H x 32.2"D |
| Compliance | MERV-13 Filtration |
| Voltage | 115V 1-Phase 60Hz. |
