DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanB130H65RS

Broan Heat Recovery Ventilator (HRV) (Fresh Air Systems). Model B130H65RS. SRE of 68% at 32°F and 60% at -13°F (64 CFM); PMSM ECM motors for energy efficient operation; Integrated electronic airflow measurement with real-time LCD; Virtuo Air Technology for auto-balancing and constant airflow. material: Galvanized steel door and cabinet, one-piece molded expanded polystyrene insulation shell, polypropylene crossflow core

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFB130H65RS.pdfData sheet

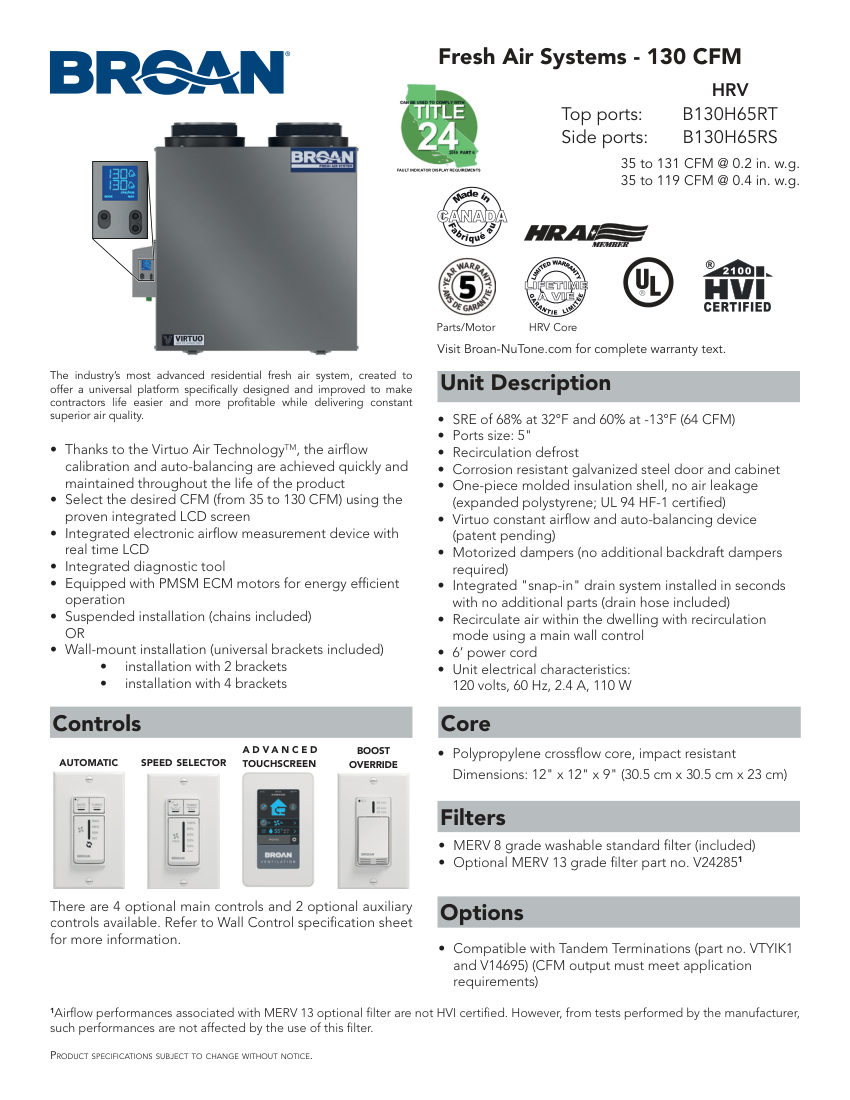

Broan B130H65RS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
B130H65RS
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberB130H65RS
DescriptionBroan Heat Recovery Ventilator (HRV) (Fresh Air Systems). Model B130H65RS. SRE of 68% at 32°F and 60% at -13°F (64 CFM); PMSM ECM motors for energy efficient operation; Integrated electronic airflow measurement with real-time LCD; Virtuo Air Technology for auto-balancing and constant airflow. material: Galvanized steel door and cabinet, one-piece molded expanded polystyrene insulation shell, polypropylene crossflow core
Connection size5" ports
End connectionSide ports
Pressure Rating0.2 in. w.g. to 0.4 in. w.g.
Flow Rate35 to 131 CFM @ 0.2 in. w.g.; 35 to 119 CFM @ 0.4 in. w.g.; mounti

Also cataloged as: B130H65RT
