DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanB150E75NS

Broan Energy Recovery Ventilator (ERV) (Fresh Air Systems). Model B150E75NS. SRE of 75% at 32°F and 52% at -13°F (66 CFM); Includes MERV 8 grade washable standard filter; Features PMSM ECM motors for energy efficient operation; Integrated electronic airflow measurement with real-time LCD. material: Galvanized steel door and cabinet, expanded polystyrene insulation shell, polypropylene crossflow core

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFB150E75NS.pdfData sheet

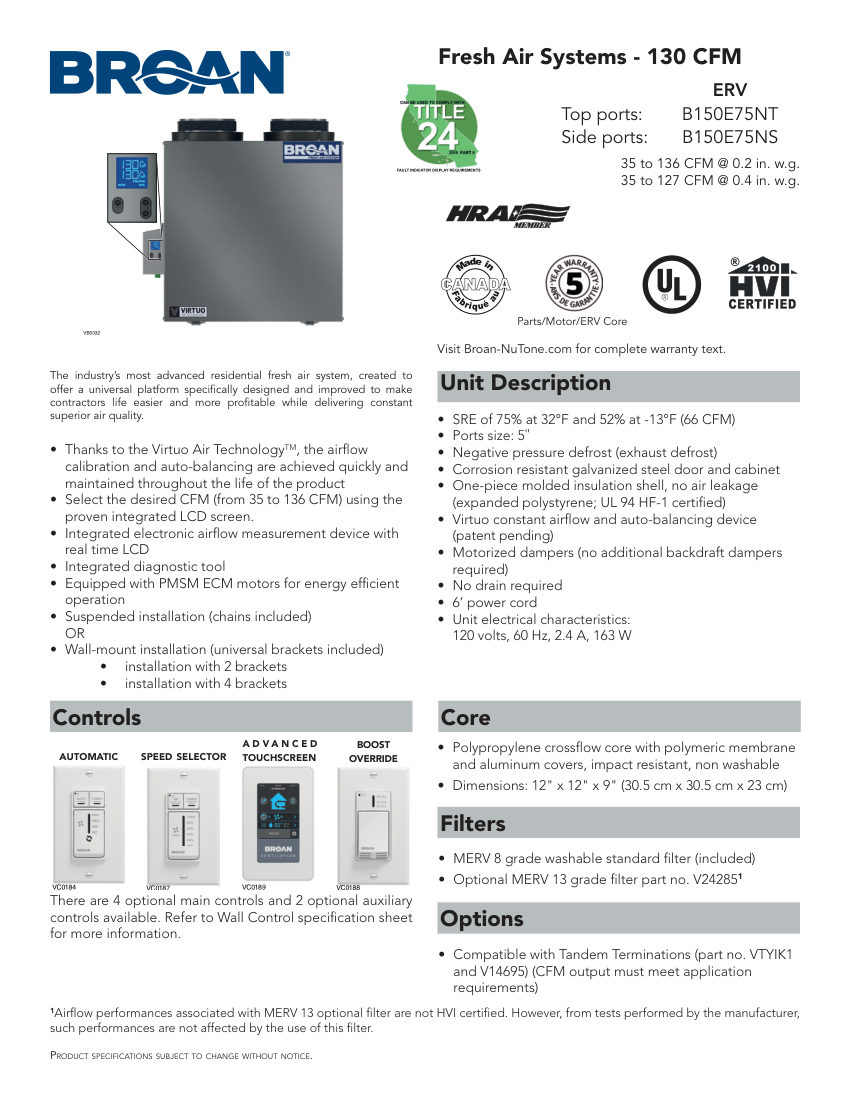

Broan B150E75NS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
B150E75NS
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberB150E75NS
DescriptionBroan Energy Recovery Ventilator (ERV) (Fresh Air Systems). Model B150E75NS. SRE of 75% at 32°F and 52% at -13°F (66 CFM); Includes MERV 8 grade washable standard filter; Features PMSM ECM motors for energy efficient operation; Integrated electronic airflow measurement with real-time LCD. material: Galvanized steel door and cabinet, expanded polystyrene insulation shell, polypropylene crossflow core
Connection size5"
End connectionSide ports
Flow Rate35 to 136 CFM @ 0.2 in. w.g.; 35 to 127 CFM @ 0.4 in. w.g.
MountingSuspended or Wall-mount
Dimensions12" x 12" x 9" (30.5 cm x 30.5 c

Also cataloged as: B150E75NT
