BroanBroan® AI Series 180 CFM Energy Recovery Ventilator (ERV)B180E75RT

Broan Energy Recovery Ventilator (Fresh Air Systems). Model B180E75RT. SRE of 78% at 32°F (81 CFM); PMSM ECM motors for energy efficient operation; Integrated electronic airflow measurement with LCD; Includes MERV 8 washable standard filter. material: Galvanized steel door and cabinet, expanded polystyrene insulation shell, polypropylene crossflow core

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFB180E75RT.pdfData sheet

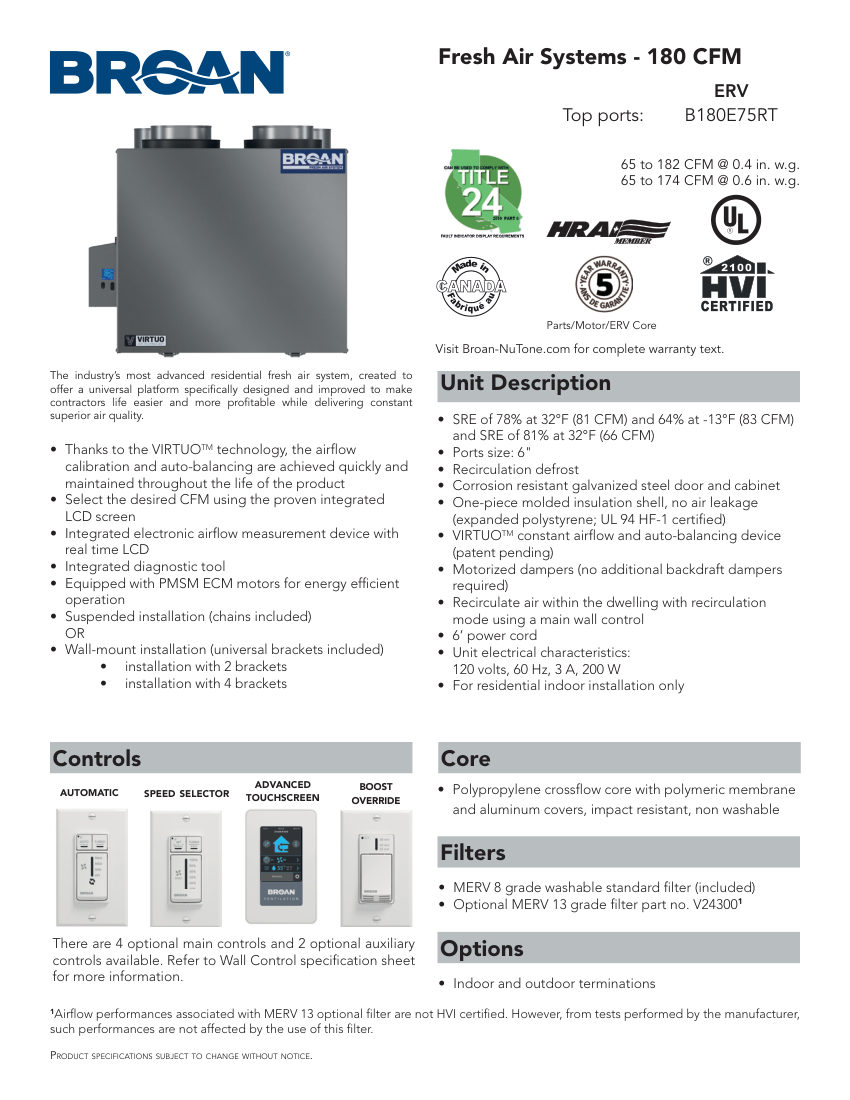

Broan B180E75RT cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
B180E75RT
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberB180E75RT
DescriptionBroan Energy Recovery Ventilator (Fresh Air Systems). Model B180E75RT. SRE of 78% at 32°F (81 CFM); PMSM ECM motors for energy efficient operation; Integrated electronic airflow measurement with LCD; Includes MERV 8 washable standard filter. material: Galvanized steel door and cabinet, expanded polystyrene insulation shell, polypropylene crossflow core
Connection size6" ports
End connectionTop ports
Flow Rate65 to 182 CFM @ 0.4 in. w.g.
MountingSuspended or wall-mount
Dimensions24-13/16" x 21-11/16" x 19-1/2".
