BroanBroan® AI Series 230 CFM Heat Recovery Ventilator (HRV)B230H75RS

Broan Heat Recovery Ventilator (HRV) (Fresh Air Systems). Model B230H75RS. SRE of 75% at 32°F and 67% at -13°F (81 CFM); SRE of 78% at 32°F (66 CFM); Equipped with PMSM ECM motors for energy efficient operation; Includes MERV 8 grade washable standard filter. material: Corrosion resistant galvanized steel door and cabinet, one-piece molded insulation shell (expanded polystyrene), polypropylene crossflow core

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFB230H75RS.pdfData sheet

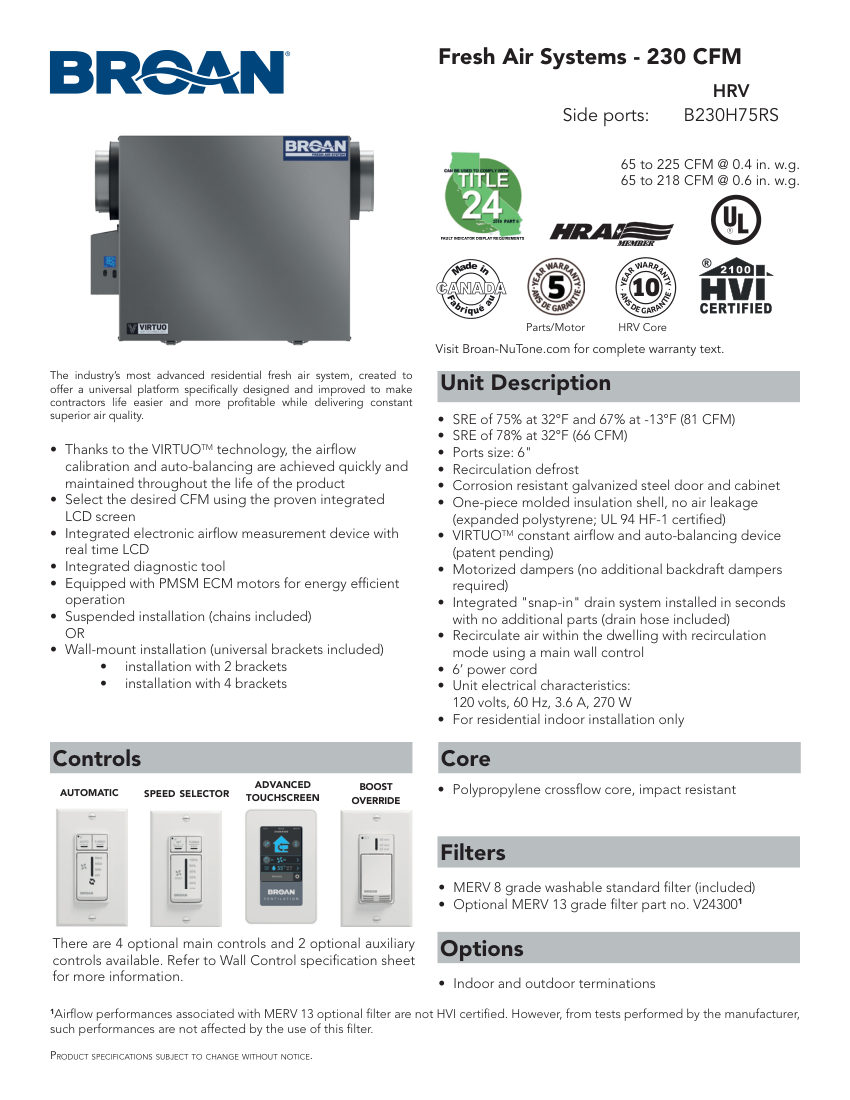

Broan B230H75RS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
B230H75RS
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberB230H75RS
DescriptionBroan Heat Recovery Ventilator (HRV) (Fresh Air Systems). Model B230H75RS. SRE of 75% at 32°F and 67% at -13°F (81 CFM); SRE of 78% at 32°F (66 CFM); Equipped with PMSM ECM motors for energy efficient operation; Includes MERV 8 grade washable standard filter. material: Corrosion resistant galvanized steel door and cabinet, one-piece molded insulation shell (expanded polystyrene), polypropylene crossflow core
Connection size6" ports
End connectionSide ports
Pressure Rating0.4 in. w.g. to 0.6 in. w.g.
Flow Rate65 to 225 CFM @ 0.4 in. w.g.; 65 to 218 CFM @ 0.6 in. w.g.
MountingSuspende
