BroanBroan® 100 Pint DehumidifierB98DHV
Broan Dehumidifier. Model B98DHV. Water Removal: 100 Pints/Day @ 80°F and 60%RH
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- B98DHV
- Product type
- Ventilation
- MasterFormat
- 23

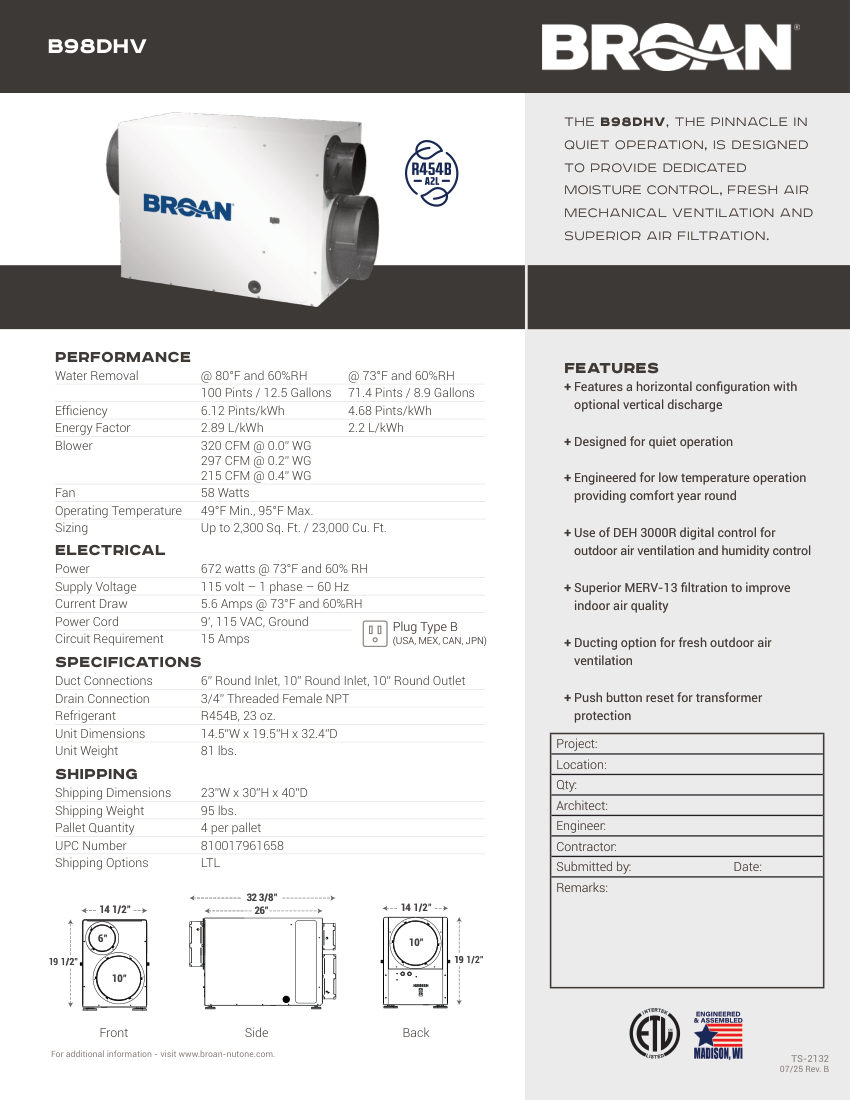

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | B98DHV |
|---|---|
| Description | Broan Dehumidifier. Model B98DHV. Water Removal: 100 Pints/Day @ 80°F and 60%RH |
| Energy Factor | 2.89 L/kWh |
| Refrigerant | R454B, 23 oz. |
| Operating Temperature | 49°F Min., 95°F Max.. connectionSize: 6" Round Inlet, 10" Round Inlet, 10" Round Outlet, 3/4" Threaded Female NPT Drain |
| Flow Rate | 320 CFM @ 0.0" WG |
| Mounting | Horizontal configuration with optional vertical discharge |
| Dimensions | 14.5"W x 19.5"H x 32.4"D |
| Compliance | MERV-13 Filtration |
| Voltage | 115V - 1 Phase - 60 Hz. |
