DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanBroanBEL8

Broan Ceiling Fan/Light (Broan-NuTone Roomside Series). Model BEL8. 12.7-Watt integrated LED lighting (800 lumens, 3500K); Permanently lubricated motor for continuous operation

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFBEL8.pdfData sheet

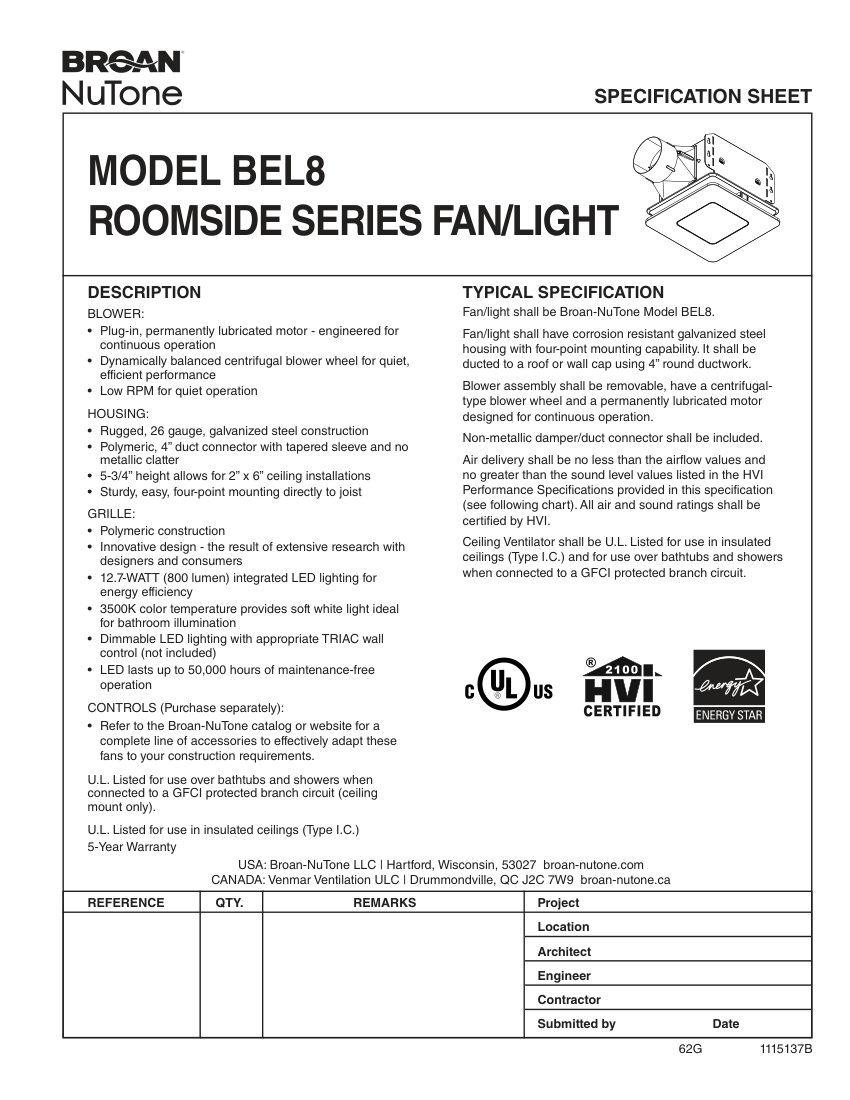

Broan BEL8 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
BEL8
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberBEL8
DescriptionBroan Ceiling Fan/Light (Broan-NuTone Roomside Series). Model BEL8. 12.7-Watt integrated LED lighting (800 lumens, 3500K); Permanently lubricated motor for continuous operation
Sound level1.5 Sones @ 0.1 in. H2O
Power consumption20.9 Watts. material: Galvanized steel housing, polymeric grille
Connection size4" round duct
End connectionPolymeric duct connector with tapered sleeve
Flow Rate80 CFM @ 0.1 in. H2O
MountingFour-point mounting to joist
Dimensions5-3/4" height.
