DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanBroanBES8

Broan Bathroom Exhaust Fan (Broan Roomside Series). Model BES8. Includes humidity sensor with adjustable set-point (50%-100% RH); Dynamically balanced centrifugal blower wheel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFBES8.pdfData sheet

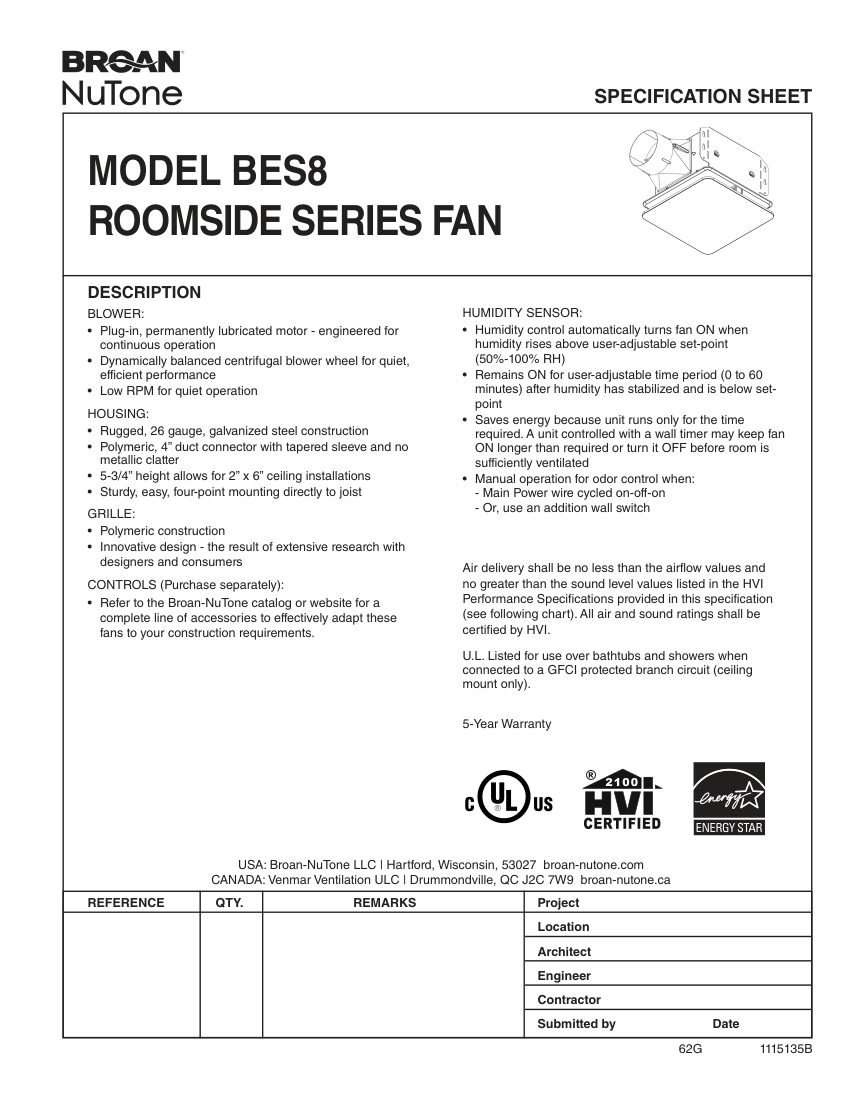

Broan BES8 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
BES8
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberBES8
DescriptionBroan Bathroom Exhaust Fan (Broan Roomside Series). Model BES8. Includes humidity sensor with adjustable set-point (50%-100% RH); Dynamically balanced centrifugal blower wheel
Sound level1.5 Sones at 0.1 in. H2O
Power consumption20.9 Watts. material: 26 gauge galvanized steel housing, polymeric duct connector and grille
Connection size4" duct connector
End connectionPlug-in
Flow Rate80 CFM at 0.1 in. H2O
MountingCeiling mount, four-point mounting to joist
Dimensions5-3/4" height.
