BroanBroanBHF80
Broan Combination heater and fan unit (Heater / Fan). Model BHF80. 1300-watt heater with metal blower wheel; Fan and heater separately controllable; Sound level no greater than 1.5 Sones; Permanently lubricated motors. material: Galvanized steel housing, powder coat finish
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- BHF80
- Product type
- Ventilation
- MasterFormat
- 23

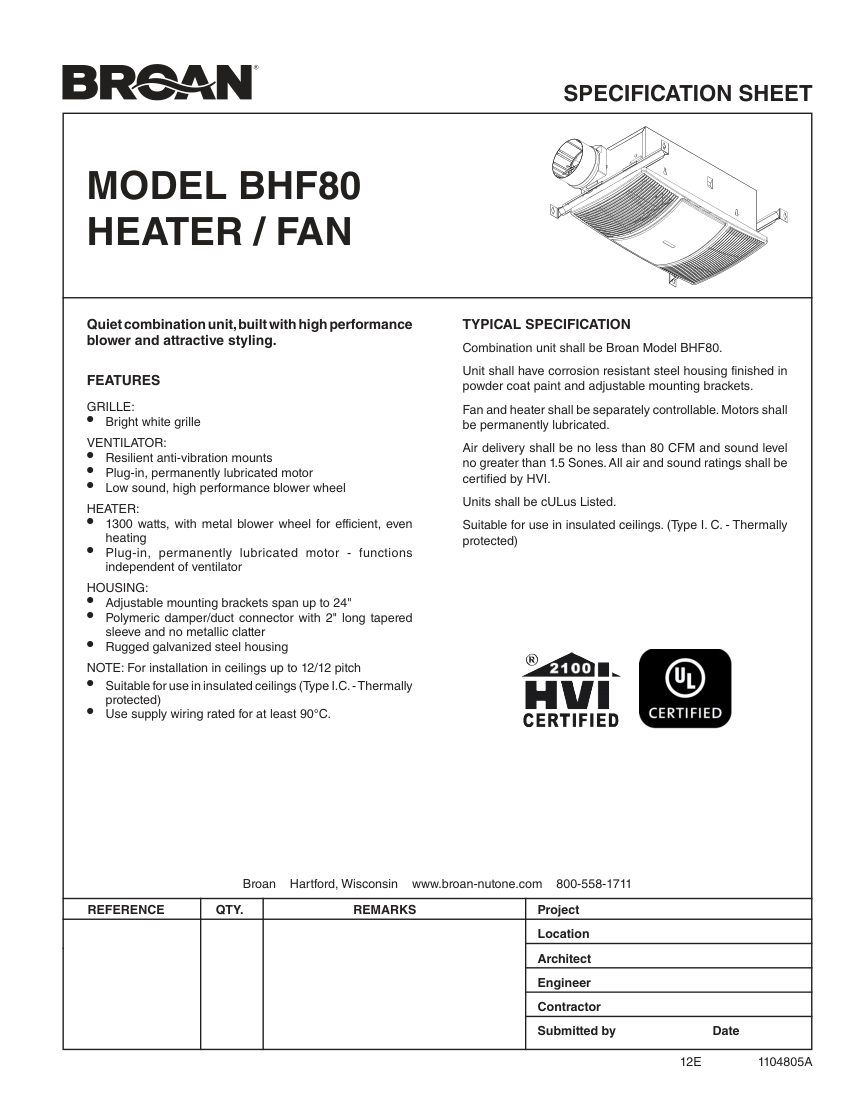

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | BHF80 |
|---|---|
| Description | Broan Combination heater and fan unit (Heater / Fan). Model BHF80. 1300-watt heater with metal blower wheel; Fan and heater separately controllable; Sound level no greater than 1.5 Sones; Permanently lubricated motors. material: Galvanized steel housing, powder coat finish |
| Connection size | 4-in. round duct |
| End connection | Polymeric damper/duct connector |
| Flow Rate | 80 CFM at 0.1 in. static pressure |
| Finish | Bright white grille |
| Mounting | Adjustable mounting brackets, suitable for insulated ceilings (Type I.C.). |
