DIV 23 · HVACVENTILATIONCUT SHEET INDEXED
BroanBroanBHFLED80
Broan Heater / Fan / Light Combination Unit (Broan). Model BHFLED80. 1300W heater with metal blower wheel
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- BHFLED80
- Product type
- Ventilation
- MasterFormat
- 23

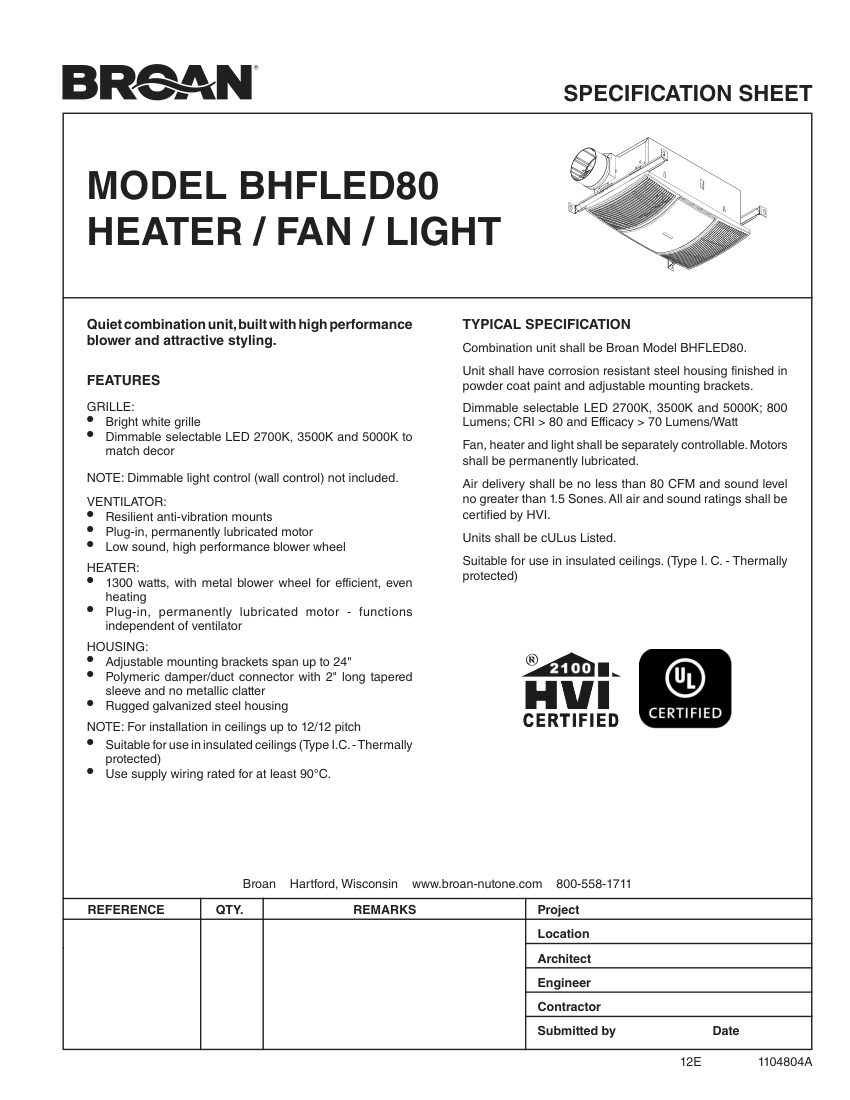

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | BHFLED80 |
|---|---|
| Description | Broan Heater / Fan / Light Combination Unit (Broan). Model BHFLED80. 1300W heater with metal blower wheel |
| Dimmable LED light | 800 Lumens, selectable 2700K/3500K/5000K |
| Sound level | 1.5 Sones at 80 CFM; Fan, heater, and light separately controllable. material: Galvanized steel housing, powder coat finish |
| Connection size | 4-in. round duct |
| End connection | Polymeric damper/duct connector with 2" long tapered sleeve |
| Pressure Rating | 0.1 in. static pressure (rated) |
| Flow Rate | 80 CFM at 0.1 in. static pressure |
| Finish | Bright white grille, powder coat paint. |
Also cataloged as: BHFLED80F, BHFLED80H
