DIV 23 · HVACVENTILATIONCUT SHEET INDEXED
BroanBLP150E75NSBLP150E75NS-PC
Broan Energy Recovery Ventilator (ERV) (Fresh Air System). Model BLP150E75NS. SRE of 84% at 32°F (0°C) (36 CFM)
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- BLP150E75NS-PC
- Product type
- Ventilation
- MasterFormat
- 23

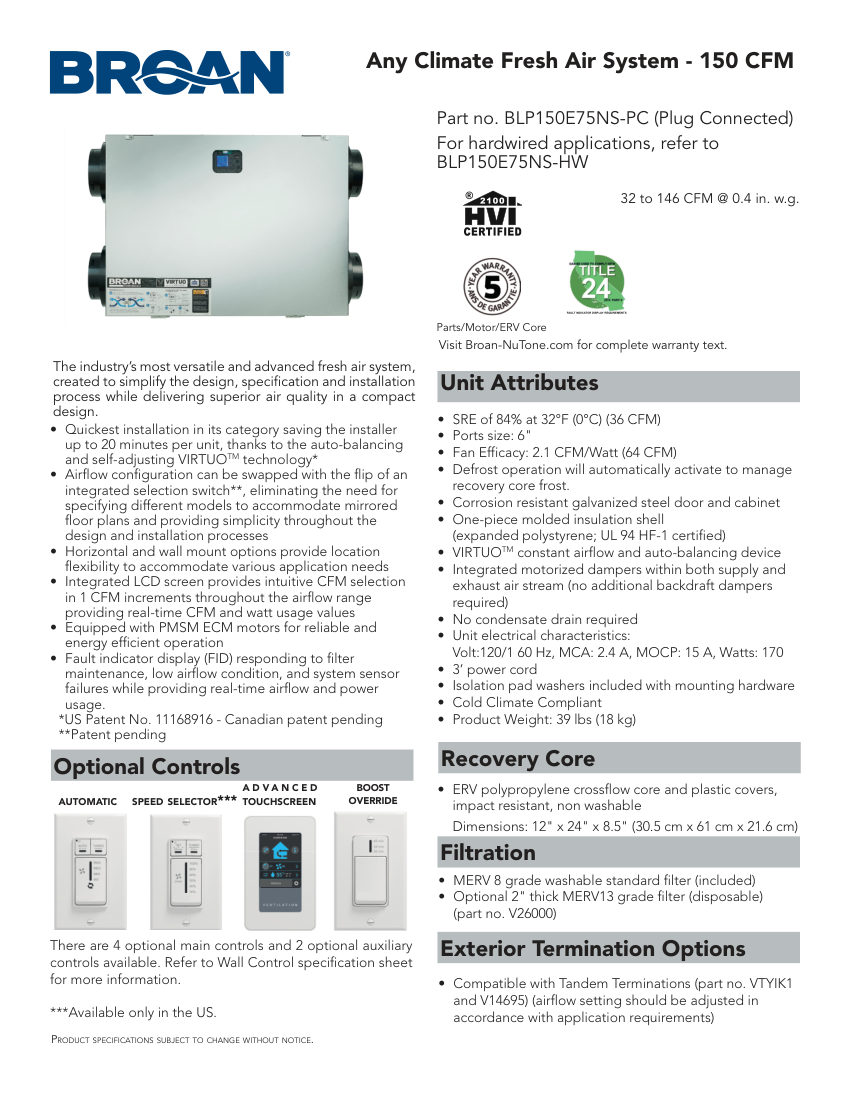

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | BLP150E75NS-PC |
|---|---|
| Description | Broan Energy Recovery Ventilator (ERV) (Fresh Air System). Model BLP150E75NS. SRE of 84% at 32°F (0°C) (36 CFM) |
| Fan Efficacy | 2.1 CFM/Watt (64 CFM); Integrated LCD screen with CFM selection in 1 CFM increments; PMSM ECM motors with VIRTUO auto-balancing technology. material: Galvanized steel door and cabinet, expanded polystyrene insulation shell |
| Connection size | 6" ports |
| End connection | Ducted |
| Pressure Rating | 32 to 146 CFM @ 0.4 in. w.g. |
| Flow Rate | 32 to 146 CFM |
| Mounting | Horizontal and wall mount. |
