DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanBroan® Economy 50 CFM Ventilation FanE050

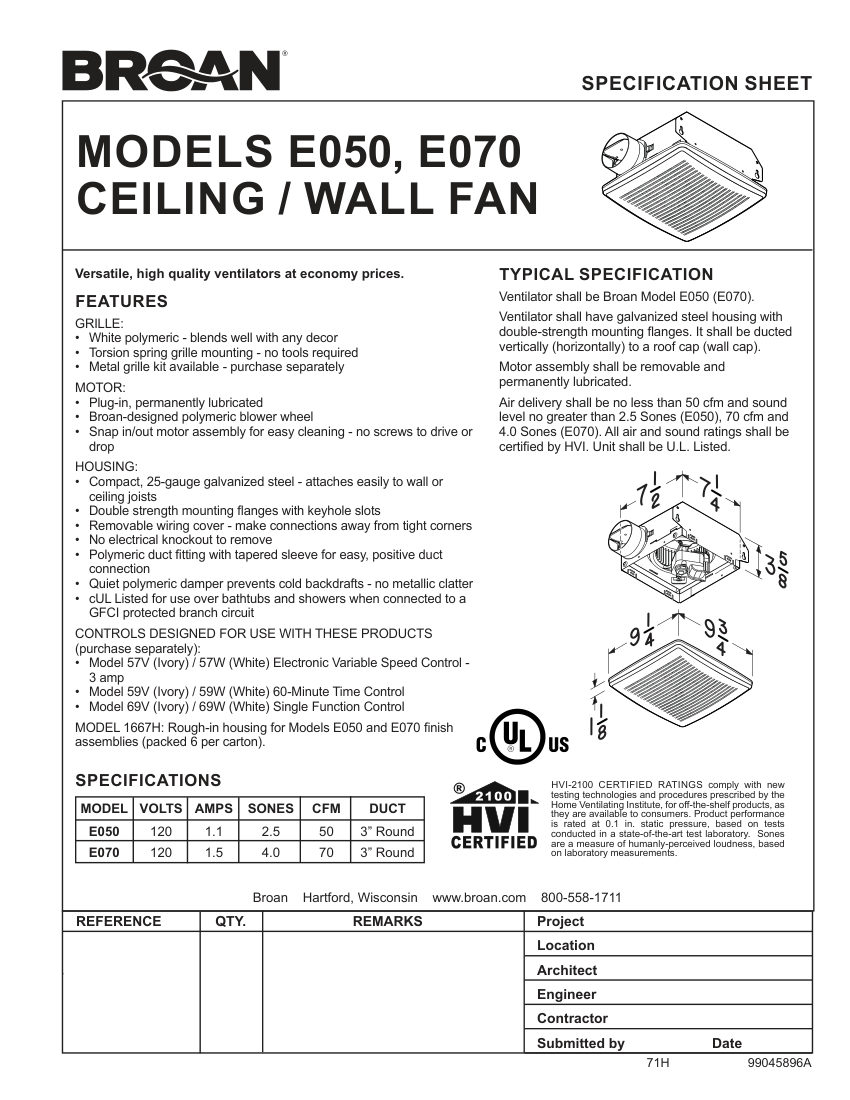

Name: Broan Broan® Economy 50 CFM Ventilation Fan (E050)
Brand: Broan
SKU: E050

Broan Ceiling / Wall Fan (Ventilation Fan). Model E050, E070. Air delivery: 50 cfm (E050) and 70 cfm (E070)

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	E050
Description	Broan Ceiling / Wall Fan (Ventilation Fan). Model E050, E070. Air delivery: 50 cfm (E050) and 70 cfm (E070)
Sound level	2.5 Sones (E050) and 4.0 Sones (E070)
Duct size	3" Round
Housing	25-gauge galvanized steel. material: Galvanized steel housing, polymeric blower wheel and grille
Connection size	3" Round
End connection	Polymeric duct fitting with tapered sleeve
Pressure Rating	0.1 in. static pressure
Flow Rate	50 cfm (E050), 70 cfm (E070)
Finish	White polymeric grille.

Also cataloged as: E070, E0F70, E0F50
