DIV 23 · HVACVENTILATIONCUT SHEET INDEXED
BroanBroan® Elite E60000 Series 30E6030SSLC
Broan Pro-Style Range Hood (Range Hood). Model E60000 Series. Max blower CFM: 650 (single) / 1290 (dual)
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- E6030SSLC
- Product type
- Ventilation
- MasterFormat
- 23

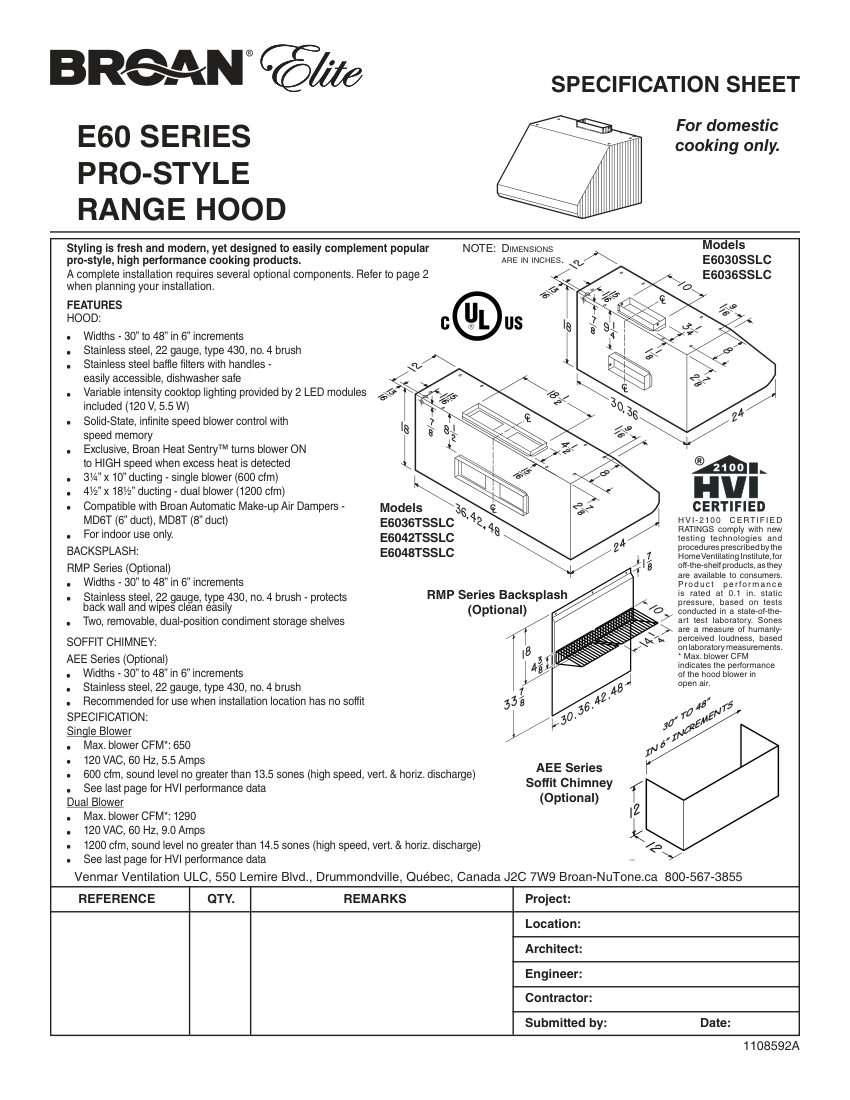

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | E6030SSLC |
|---|---|
| Description | Broan Pro-Style Range Hood (Range Hood). Model E60000 Series. Max blower CFM: 650 (single) / 1290 (dual) |
| Sound level | ≤13.5 sones (single) / ≤14.5 sones (dual); Includes 2 LED modules (120 V, 5.5 W); Stainless steel baffle filters, dishwasher safe. material: Stainless steel, 22 gauge, type 430, no. 4 brush |
| Connection size | 3¼" x 10" (single blower) or 4½" x 18½" (dual blower) |
| Flow Rate | 600 cfm (single) / 1200 cfm (dual) |
| Finish | Stainless steel |
| Mounting | Indoor use only |
| Dimensions | Widths 30" to 48" in 6" increments. |
Also cataloged as: E6036SSLC
