BroanBroanE6030SSM
Broan Canopy Range Hood (Range Hood). Model E60 Series (E6030SSM, E6036SSM, E6042TSSM, E6048TSSM). Max Blower CFM: 650 (Single) / 1260 (Dual)
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- E6030SSM
- Product type
- Ventilation
- MasterFormat
- 23

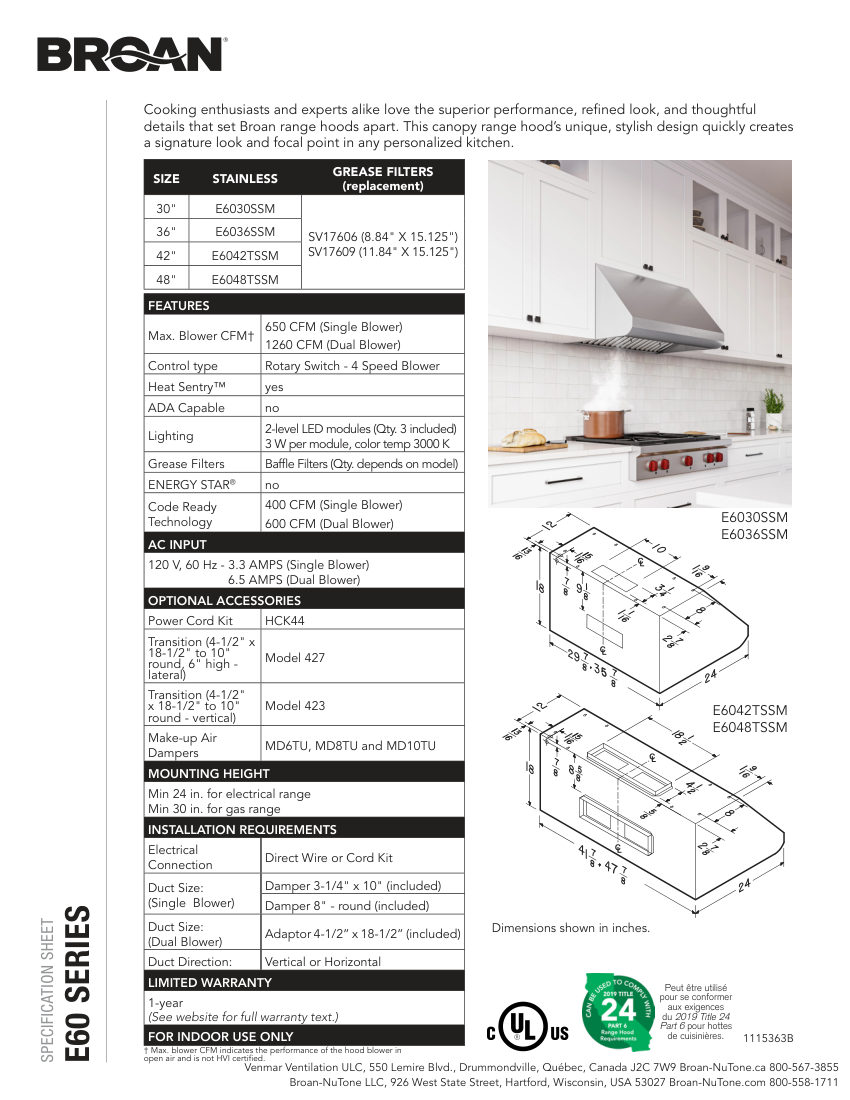

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | E6030SSM |
|---|---|
| Description | Broan Canopy Range Hood (Range Hood). Model E60 Series (E6030SSM, E6036SSM, E6042TSSM, E6048TSSM). Max Blower CFM: 650 (Single) / 1260 (Dual) |
| Control | Rotary Switch - 4 Speed |
| Lighting | 3 x 2-level LED modules (3W, 3000K) |
| Grease Filters | Baffle type. material: Stainless Steel |
| Connection size | 3-1/4" x 10" (Single Blower) / 8" round (Dual Blower) |
| End connection | Vertical or Horizontal Duct |
| Flow Rate | 650 CFM (Single Blower) / 1260 CFM (Dual Blower) |
| Finish | Stainless Steel |
| Mounting | Canopy. |
Also cataloged as: E6036SSM, E6042TSSM, E6048TSSM
