BroanBroan® Elite Corteo 30ERLE130BLS

Broan Under-Cabinet Range Hood (Range Hood). Model ERLE130BLS / ERLE130SS / ERLE130WH. 3-Speed infrared control with delay off; Hybrid baffle grease filters included; 3-level LED lighting included; Quiet Captur system with <0.3 sones at normal speed. material: Stainless Steel, Black, White

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFERLE130BLS.pdfData sheet

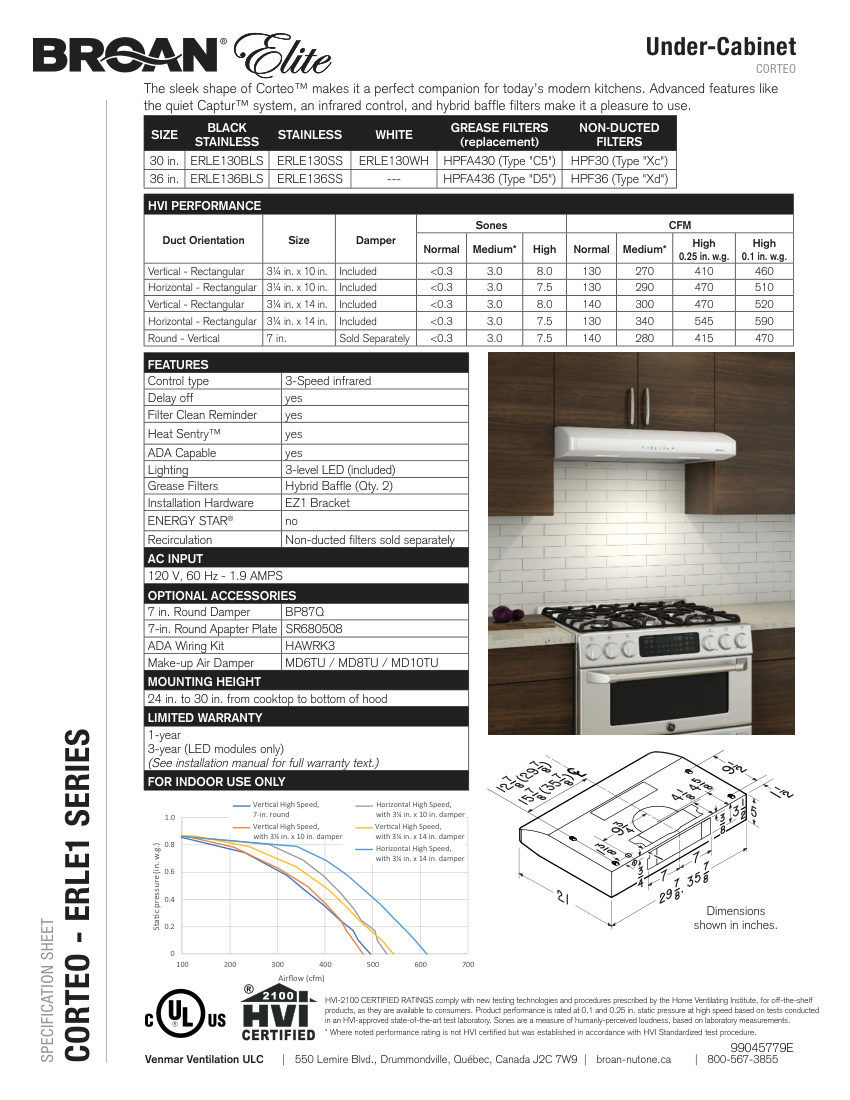

Broan ERLE130BLS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
ERLE130BLS
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberERLE130BLS
DescriptionBroan Under-Cabinet Range Hood (Range Hood). Model ERLE130BLS / ERLE130SS / ERLE130WH. 3-Speed infrared control with delay off; Hybrid baffle grease filters included; 3-level LED lighting included; Quiet Captur system with <0.3 sones at normal speed. material: Stainless Steel, Black, White
Connection size3.25 in. x 10 in. or 3.25 in. x 14 in. rectangular; 7 in. round
End connectionDucted or Non-Ducted
Flow Rate130-140 CFM (Normal), 270-340 CFM (Medium), 410-590 CFM (High)
FinishBlack, Stainless, White
MountingUnder-Cabinet, 24-30 in. from cooktop.

Also cataloged as: ERLE130SS, ERLE130WH, ERLE136BLS, ERLE136SS, ERLE136WH
