BroanERV120S
Broan Energy Recovery Ventilator (Broan Compact Flex Series). Model ERV120. 120 CFM at 0.4 in. w.g.; 5-year warranty on parts and core; Crossflow and counterflow core with 56 ft.2 exchange surface
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- ERV120S
- Product type
- Ventilation
- MasterFormat
- 23

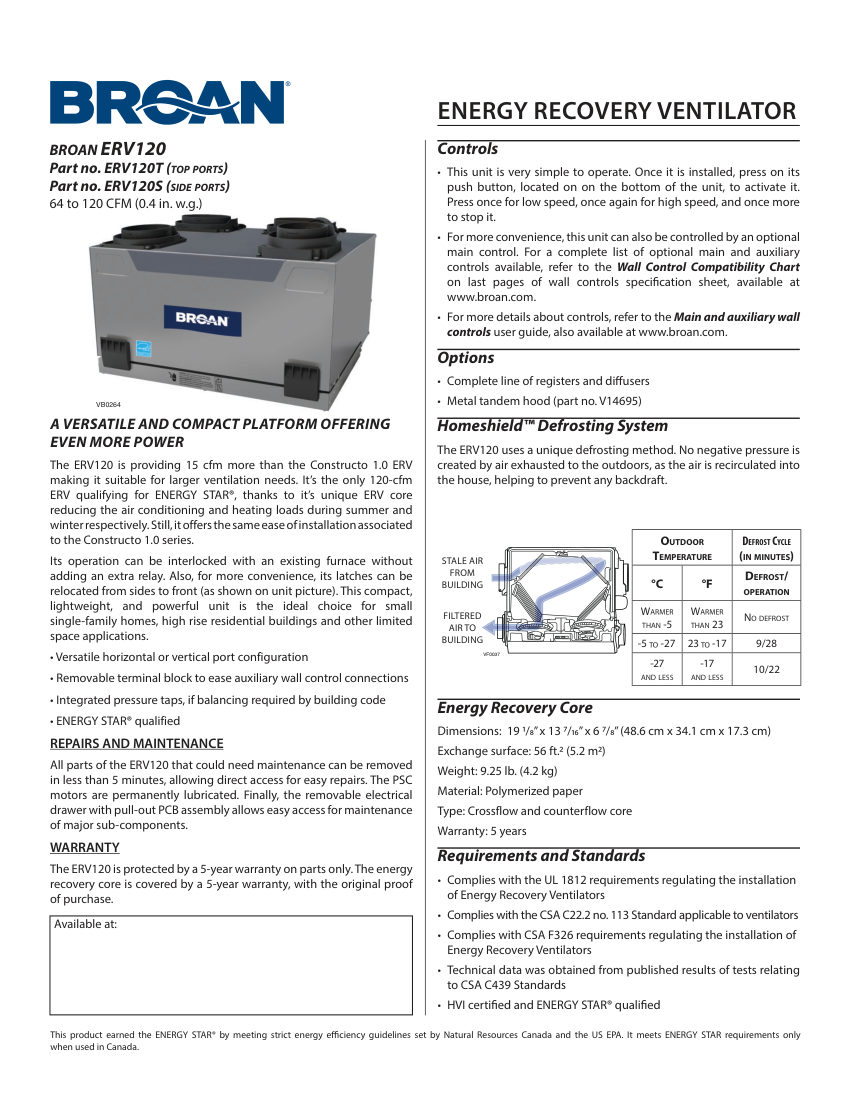

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | ERV120S |
|---|---|
| Description | Broan Energy Recovery Ventilator (Broan Compact Flex Series). Model ERV120. 120 CFM at 0.4 in. w.g.; 5-year warranty on parts and core; Crossflow and counterflow core with 56 ft.2 exchange surface |
| Weight | 9.25 lb. (4.2 kg). material: Polymerized paper (core) |
| Pressure Rating | 0.4 in. w.g. |
| Flow Rate | 64 to 120 CFM |
| Mounting | Horizontal or vertical port configuration |
| Dimensions | 19 1/8" x 13 7/16" x 6 7/8" (48.6 cm x 34.1 cm x 17.3 cm) |
| Compliance | ENERGY STAR®, UL 1812, CSA C22.2 no. 113, CSA F326. |
Also cataloged as: ERV120T
