BroanEVO5EVO5-700
Broan HRV (Heat Recovery Ventilator). Model EVO5-700. Equipped with HEPA filter removing 99.97% of allergens; Ultra-quiet operation at 2.5 sones on low speed; Suitable for homes up to 3,000 sq. ft.; Includes electronic main wall control with LCD screen. material: Polypropylene (Heat Recovery Core)
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- EVO5-700
- Product type
- Ventilation
- MasterFormat
- 23
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | EVO5-700 |
|---|---|
| Description | Broan HRV (Heat Recovery Ventilator). Model EVO5-700. Equipped with HEPA filter removing 99.97% of allergens; Ultra-quiet operation at 2.5 sones on low speed; Suitable for homes up to 3,000 sq. ft.; Includes electronic main wall control with LCD screen. material: Polypropylene (Heat Recovery Core) |
| Connection size | 5-in. diameter ports |
| Flow Rate | 50 to 104 CFM (0.4 in. w.g.) |
| Dimensions | 37 7/8" x 33" x 11¼" (Unit), 10" x 10" x 10" (Core) |
| Compliance | UL 1812, CSA C22.2 no. 113, CSA C444, HVI certified. |

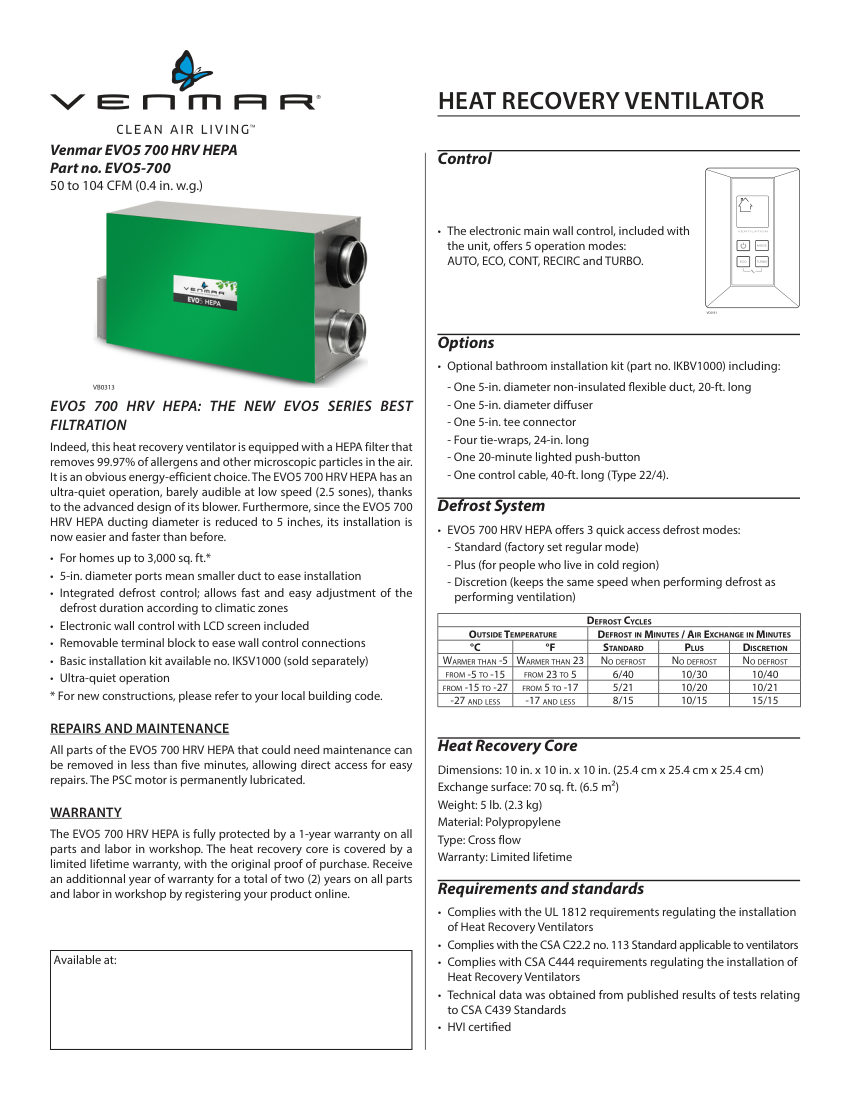

- Official cut sheet, indexed
