BroanEZ80NC
Broan Ceiling Ventilation Fan (Ventilation Fan). Model EZ80NC. 80 CFM airflow at 0.1 in. H2O static pressure; 1.0 Sones sound level; 25.7 Watts power consumption; 0.3 Amps. material: Galvanized steel housing, polymeric grille
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- EZ80NC
- Product type
- Ventilation
- MasterFormat
- 23

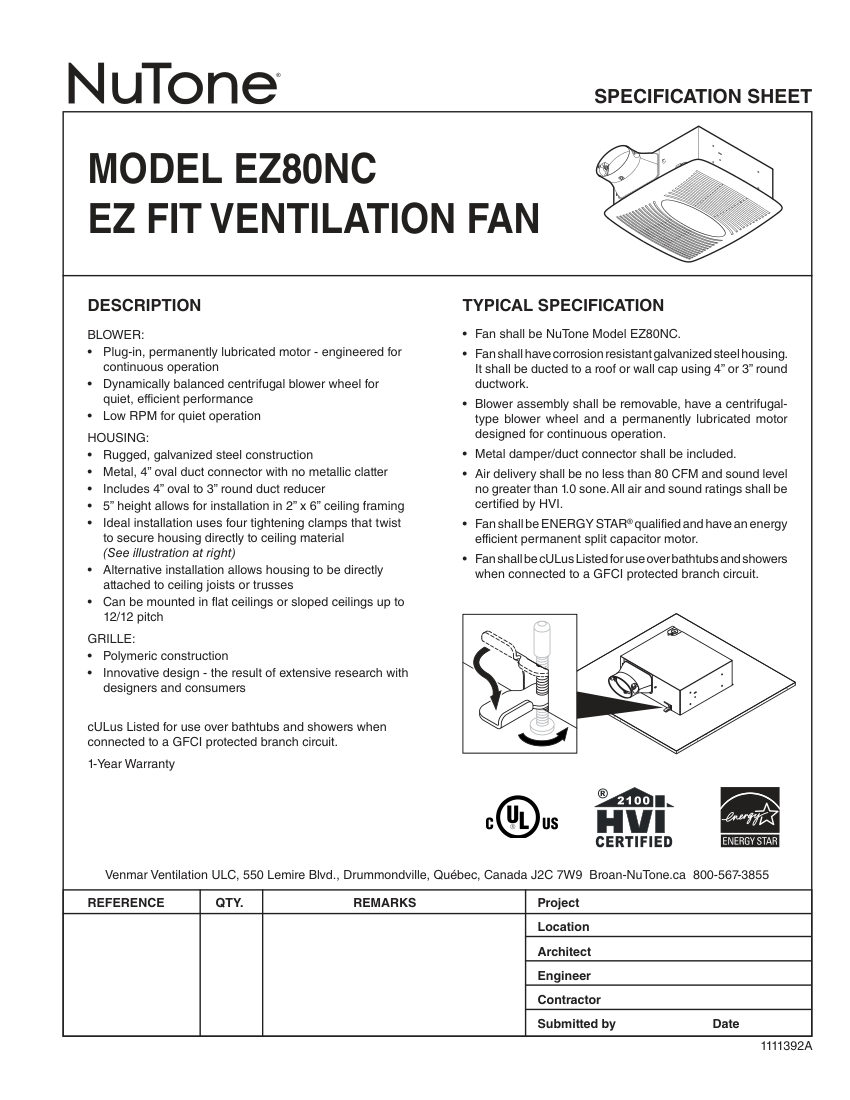

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | EZ80NC |
|---|---|
| Description | Broan Ceiling Ventilation Fan (Ventilation Fan). Model EZ80NC. 80 CFM airflow at 0.1 in. H2O static pressure; 1.0 Sones sound level; 25.7 Watts power consumption; 0.3 Amps. material: Galvanized steel housing, polymeric grille |
| Connection size | 4" oval duct connector (includes 4" to 3" round reducer) |
| End connection | Ducted to roof or wall cap |
| Pressure Rating | 0.1 in. H2O (HVI certified) |
| Flow Rate | 80 CFM |
| Mounting | Ceiling (2" x 6" framing or joists/trusses), flat or sloped up to 12/12 pitch. |
