DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanBroanF4030SF

Name: Broan Broan (F4030SF)
Brand: Broan
SKU: F4030SF

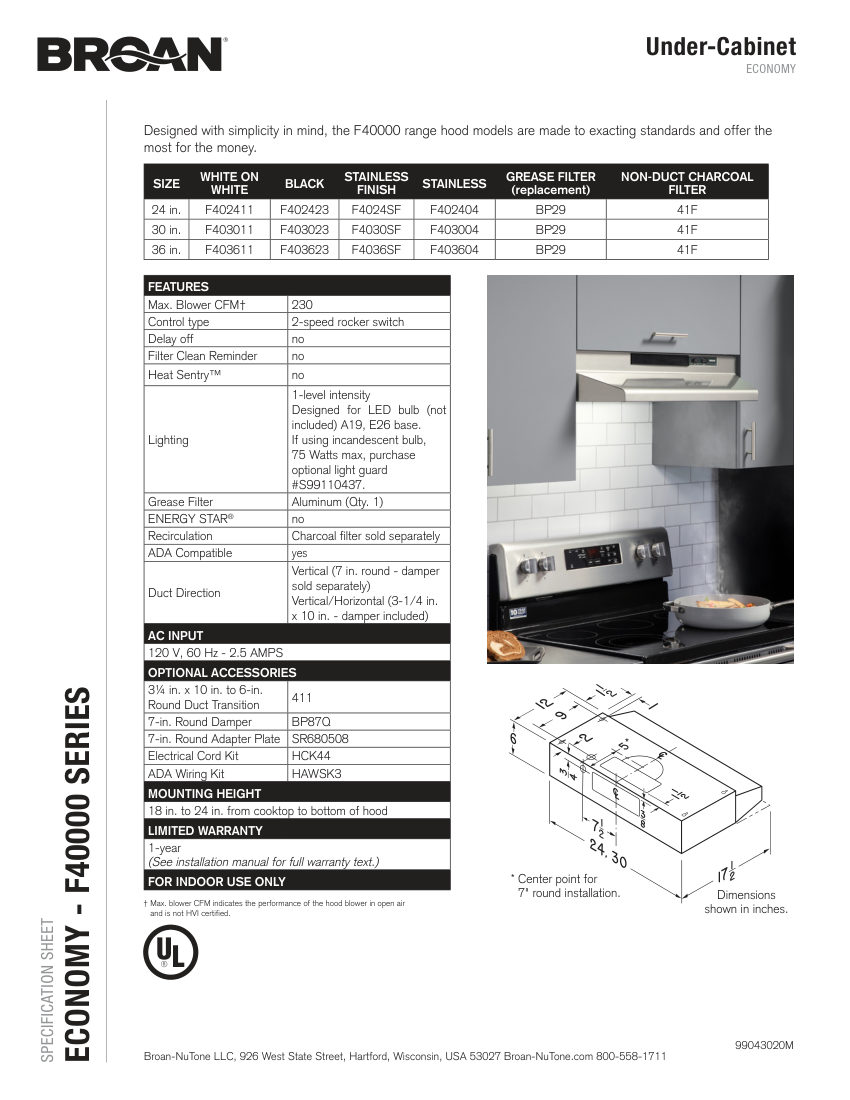

Broan Under-Cabinet Range Hood (Range Hood). Model F40000 Series (F402411, F403011, F403611, etc.). Max. Blower CFM: 230

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	F4030SF
Description	Broan Under-Cabinet Range Hood (Range Hood). Model F40000 Series (F402411, F403011, F403611, etc.). Max. Blower CFM: 230
Control Type	2-speed rocker switch
Lighting	1-level intensity, LED bulb (A19, E26 base) or 75W incandescent max
Grease Filter	Aluminum (Qty. 1). material: Aluminum (Grease Filter)
Connection size	7 in. round (vertical) or 3-1/4 in. x 10 in. (vertical/horizontal)
End connection	Ducted or Recirculating (charcoal filter sold separately)
Flow Rate	230 CFM
Finish	White on Black, Stainless, White
Mounting	Under-Cabinet, 18 in. to 24 in. from cooktop.

Also cataloged as: F403608, F402401, F402404, F402411, F402423, F403001, F403004, F403008, F403011, F403022, F403023
