DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanBroan® Fresh In™ Motorized Supply DamperFIN-6MD

Broan Motorized Supply Damper (Fresh Air Intake). Model FIN-6MD. Motorized damper with integrated temperature and humidity sensor; Monitors last 48 hours of outdoor conditions to optimize fresh air intake; Five selectable comfort modes for different climate zones

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFFIN-6MD.pdfData sheet

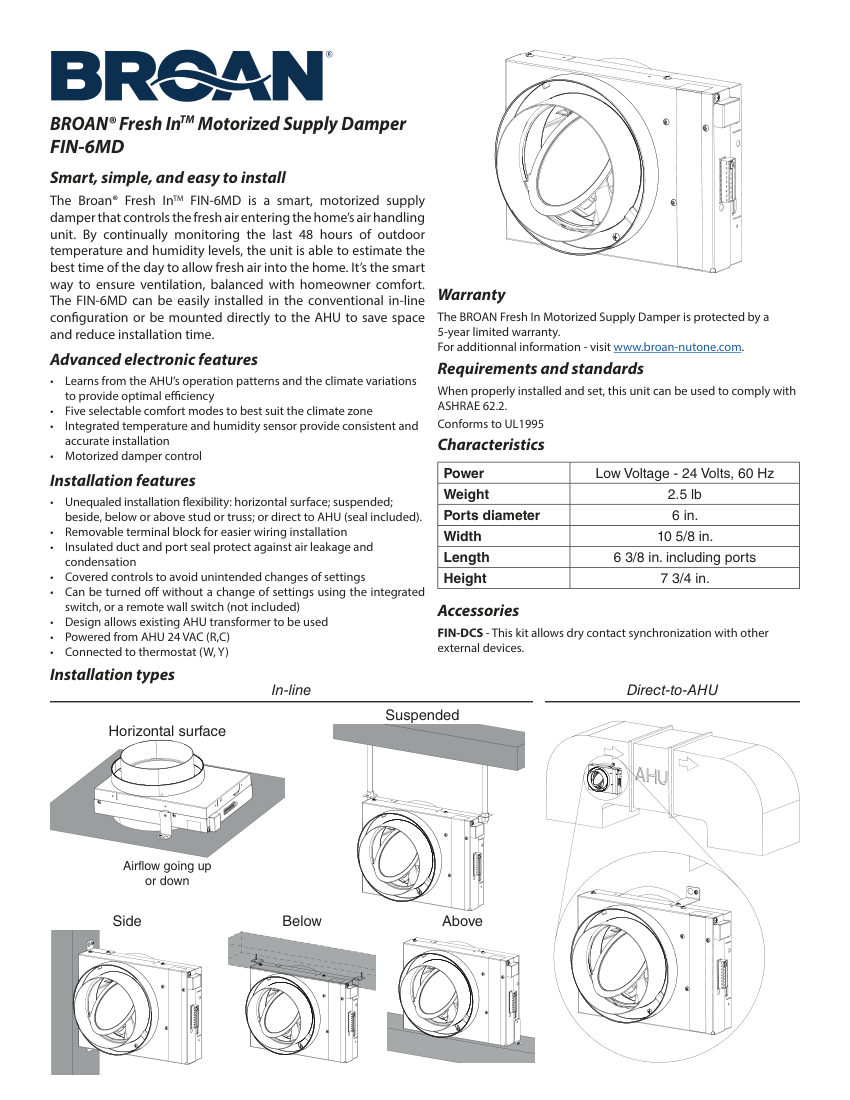

Broan FIN-6MD cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
FIN-6MD
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberFIN-6MD
DescriptionBroan Motorized Supply Damper (Fresh Air Intake). Model FIN-6MD. Motorized damper with integrated temperature and humidity sensor; Monitors last 48 hours of outdoor conditions to optimize fresh air intake; Five selectable comfort modes for different climate zones
Weight2.5 lb. material: 24 ga galvannealed steel
Connection size6 in. round
End connectionRound ports with vapor barrier ring
MountingIn-line, direct-to-AHU, horizontal, suspended, side, below, or above surface
Dimensions10 5/8 in. W x 7 3/4 in. H x 6 3/8 in. L
ComplianceUL1995, ASHRAE 62.2.
