BroanNuTone® 80 CFM Ventilation Fan with Interchangeable BulbHB80RL

Broan Ceiling Ventilation Fan with Light (Ventilation). Model HB80RL. 80 CFM air delivery at 0.1 in. static pressure; 2.5 Sones sound level; Accepts up to 100W incandescent lamp (bulb not included); Totally enclosed, permanently lubricated motor. material: Galvanized steel housing, polymeric grille

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFHB80RL.pdfData sheet

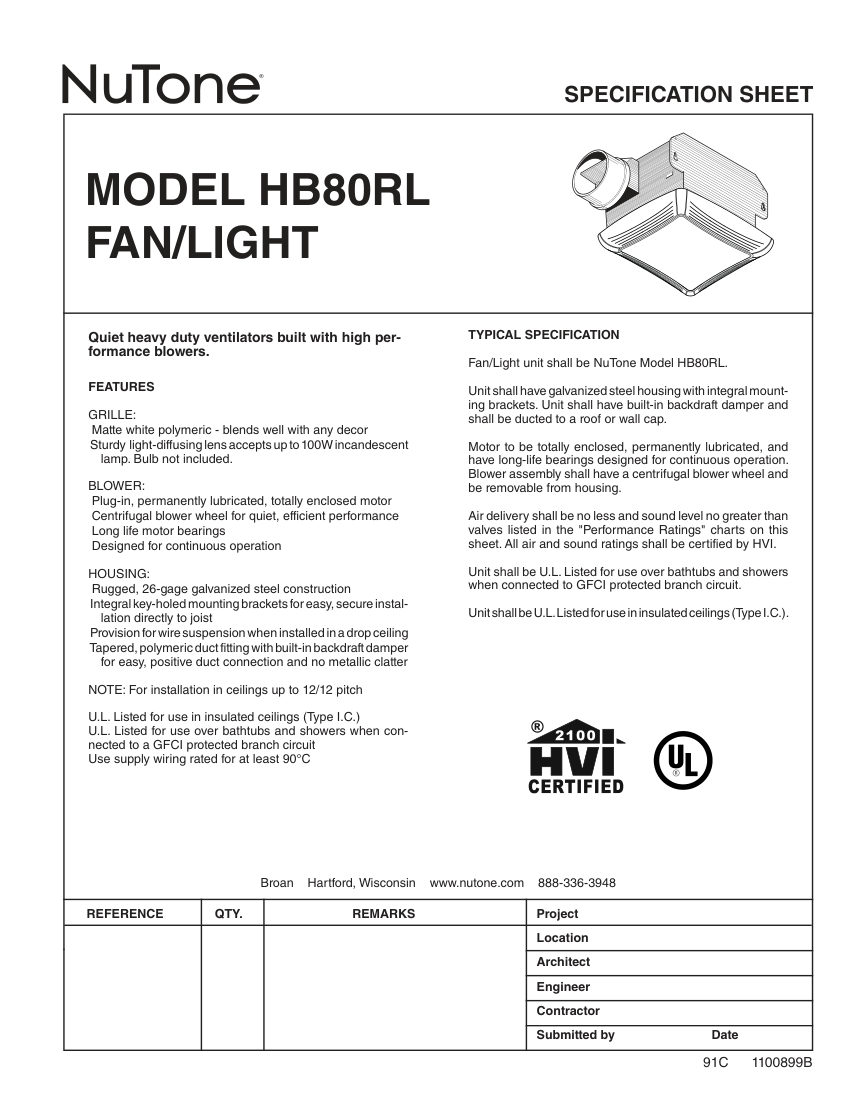

Broan HB80RL cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
HB80RL
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberHB80RL
DescriptionBroan Ceiling Ventilation Fan with Light (Ventilation). Model HB80RL. 80 CFM air delivery at 0.1 in. static pressure; 2.5 Sones sound level; Accepts up to 100W incandescent lamp (bulb not included); Totally enclosed, permanently lubricated motor. material: Galvanized steel housing, polymeric grille
End connectionTapered polymeric duct fitting
Pressure Rating0.1 in. H2O
Flow Rate80 CFM
FinishMatte white
MountingIntegral key-holed mounting brackets, wire suspension provision.
