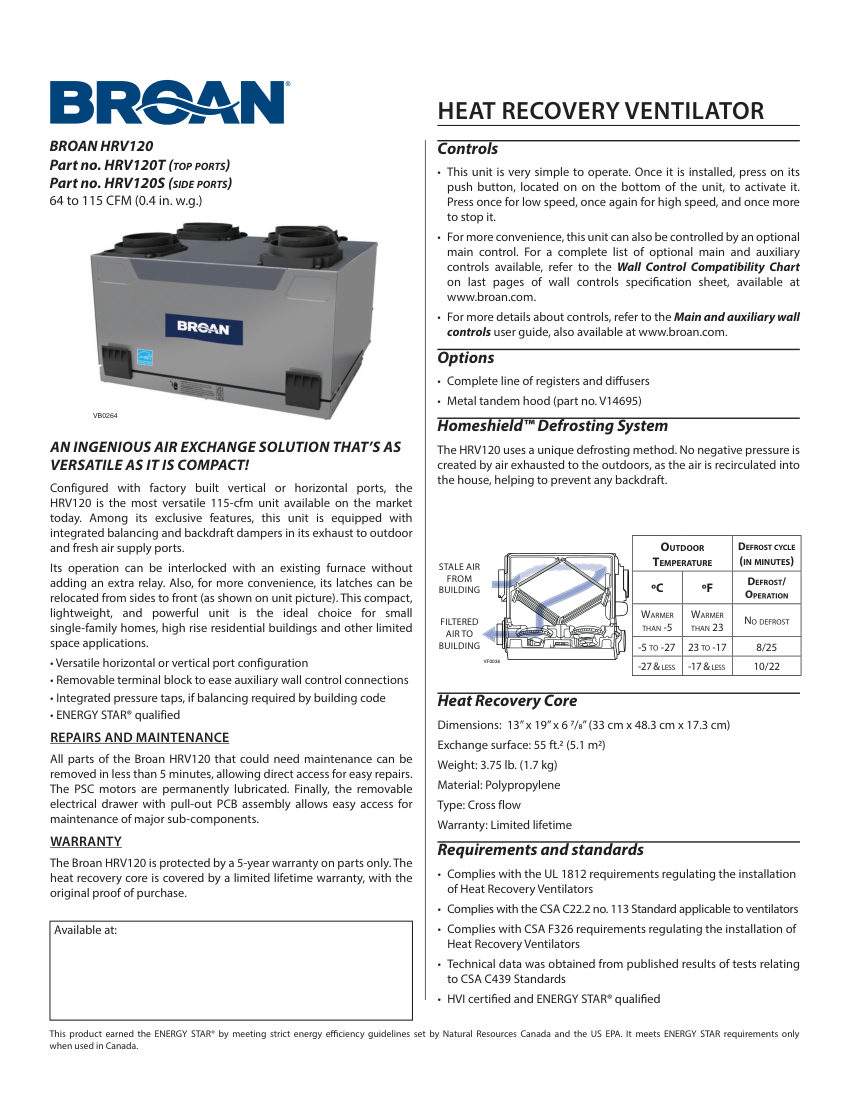

BroanHRV120S
Broan Heat Recovery Ventilator. Model HRV120. Flow rate: 64 to 115 CFM at 0.4 in. w.g.
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- HRV120S
- Product type
- Ventilation
- MasterFormat
- 23
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | HRV120S |
|---|---|
| Description | Broan Heat Recovery Ventilator. Model HRV120. Flow rate: 64 to 115 CFM at 0.4 in. w.g. |
| Heat recovery core | Cross flow, 55 ft.2 (5.1 m2) exchange surface |
| Weight | 3.75 lb. (1.7 kg) |
| Features | Integrated balancing and backdraft dampers, Homeshield Defrosting System. material: Polypropylene |
| Flow Rate | 64 to 115 CFM at 0.4 in. w.g. |
| Mounting | Horizontal or vertical port configuration |
| Dimensions | 13" x 19" x 6 7/8" (33 cm x 48.3 cm x 17.3 cm) |
| Compliance | UL 1812, CSA C22.2 no. 113, CSA F326, ENERGY STAR. |
Also cataloged as: HRV120T
