DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanBroan® ADVANCED SERIES HIGH EFFICIENCY HEAT RECOVERY VENTILATORHRV130FLS

Broan Heat Recovery Ventilator (Ventilation). Model HRV130FL. Sensible recovery efficiency of 75% at 32°F; Crossflow heat recovery core with limited lifetime warranty; Includes magnetic backdraft dampers and integrated snap-in drain system; Flippable design for installation flexibility. material: Polypropylene

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFHRV130FLS.pdfData sheet

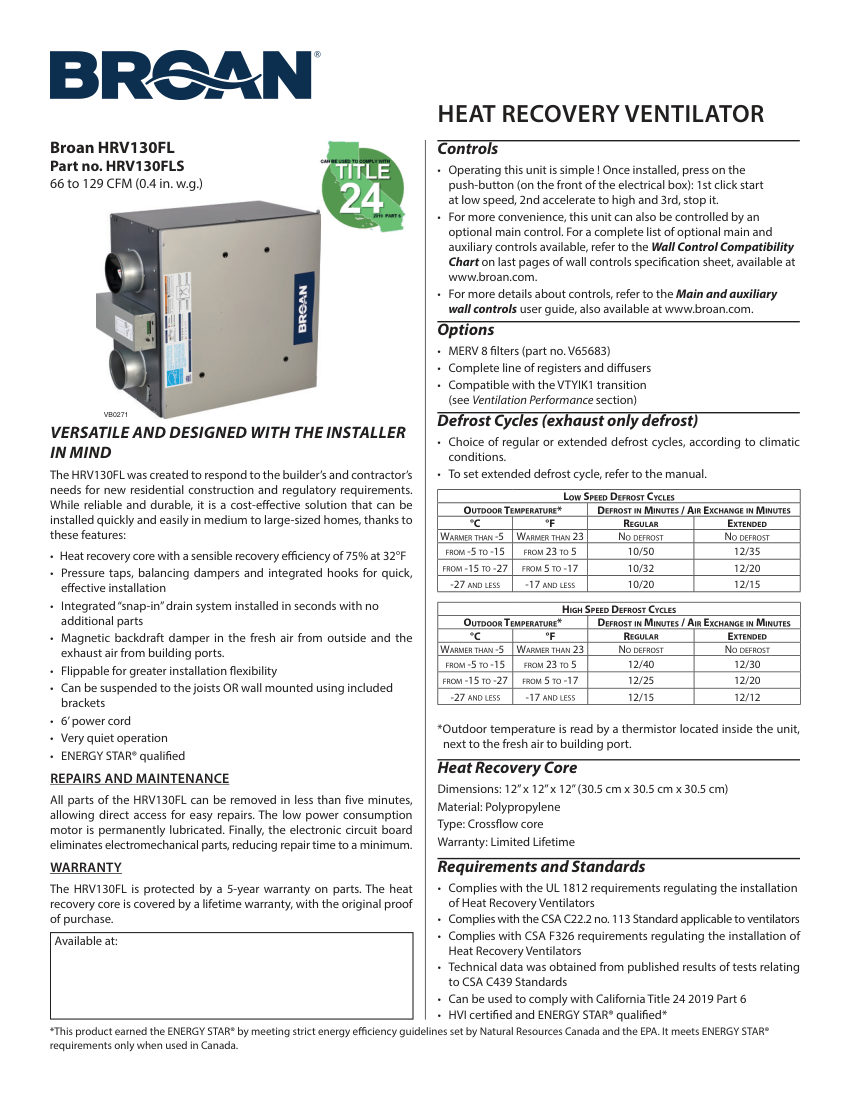

Broan HRV130FLS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
HRV130FLS
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberHRV130FLS
DescriptionBroan Heat Recovery Ventilator (Ventilation). Model HRV130FL. Sensible recovery efficiency of 75% at 32°F; Crossflow heat recovery core with limited lifetime warranty; Includes magnetic backdraft dampers and integrated snap-in drain system; Flippable design for installation flexibility. material: Polypropylene
Pressure Rating0.4 in. w.g.
Flow Rate66 to 129 CFM
MountingSuspended to joists or wall mounted
Dimensions12" x 12" x 12" (30.5 cm x 30.5 cm x 30.5 cm)
ComplianceUL 1812, CSA C22.2 no. 113, CSA F326, ENERGY STAR.
