DIV 23 · HVACVENTILATIONCUT SHEET INDEXED
BroanHRV80S
Broan Heat Recovery Ventilator. Model HRV80. 71 CFM at 0.4 in. w.g.; Single blower design for quiet operation
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Broan
- Catalog no.
- HRV80S
- Product type
- Ventilation
- MasterFormat
- 23

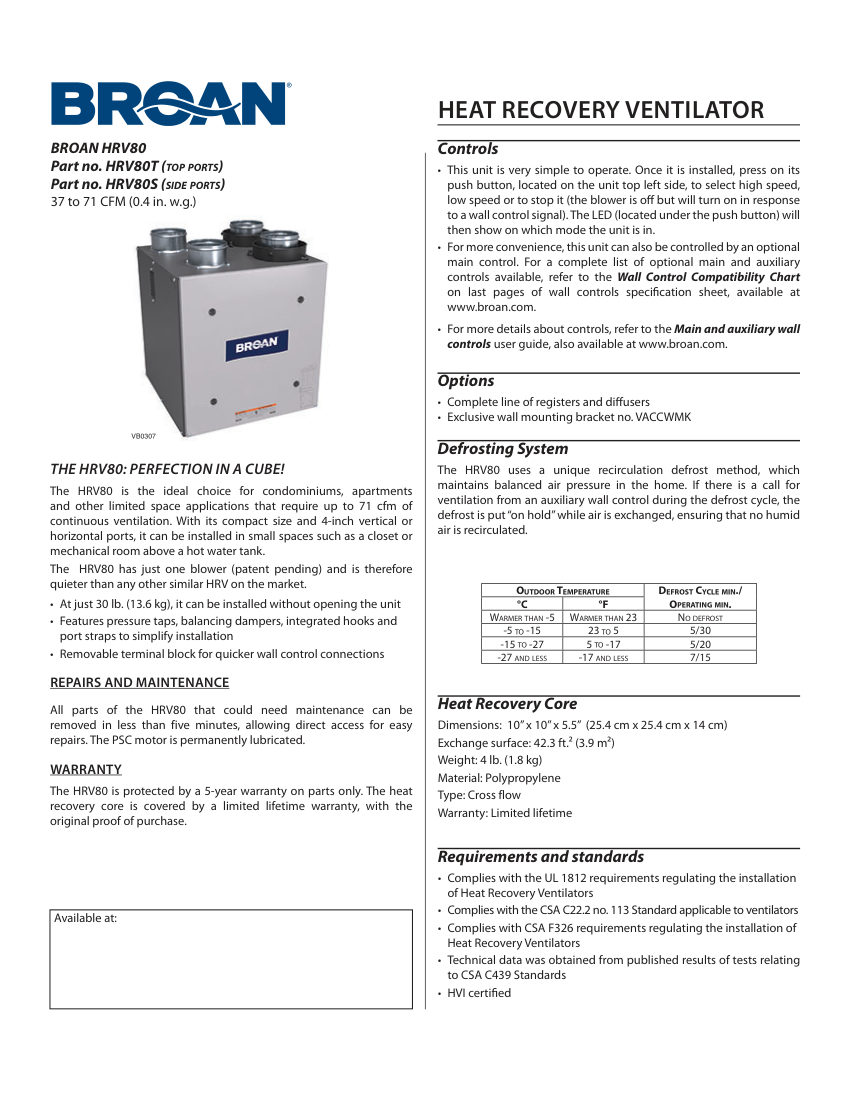

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | HRV80S |
|---|---|
| Description | Broan Heat Recovery Ventilator. Model HRV80. 71 CFM at 0.4 in. w.g.; Single blower design for quiet operation |
| Weight | 30 lb. (13.6 kg) |
| Heat Recovery Core | 10" x 10" x 5.5", 42.3 ft.2 exchange surface. material: Polypropylene (Heat Recovery Core) |
| Connection size | 4-inch vertical or horizontal ports |
| Pressure Rating | 0.4 in. w.g. |
| Flow Rate | 37 to 71 CFM |
| Mounting | Wall mounting bracket no. VACCWMK |
| Dimensions | 10" x 10" x 5.5" (25.4 cm x 25.4 cm x 14 cm) (Heat Recovery Core). |
Also cataloged as: HRV80T
