DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanBroan® HV 1.5, The Affordable SolutionHV15

Broan Whole-House Air Exchanger. Model HV 1.5. Includes CMR wall control with Minimum, Maximum, and Recirculation modes; Features washable mesh filter for mechanical air filtration; Suitable for houses up to 2,000 sq. ft.; 2-year warranty on parts and labor. connectionSize: 6" (15 cm) indoor ports; 5" (12 cm) outdoor adapters

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFHV15.pdfData sheet

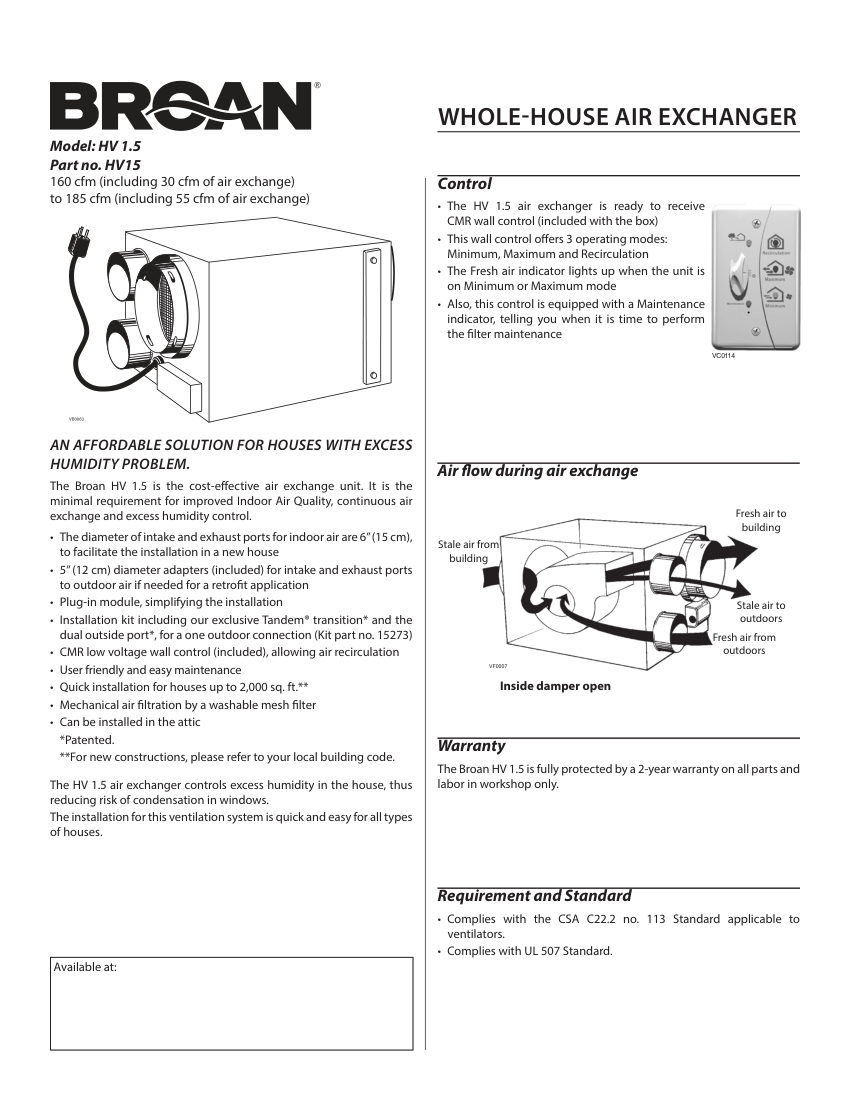

Broan HV15 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
HV15
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberHV15
DescriptionBroan Whole-House Air Exchanger. Model HV 1.5. Includes CMR wall control with Minimum, Maximum, and Recirculation modes; Features washable mesh filter for mechanical air filtration; Suitable for houses up to 2,000 sq. ft.; 2-year warranty on parts and labor. connectionSize: 6" (15 cm) indoor ports; 5" (12 cm) outdoor adapters
End connectionPlug-in module
Flow Rate160-185 cfm gross; 30-55 cfm net exchange
MountingAttic or Basement
Dimensions23" x 18.25" x 15" (58.4 x 46.4 x 38 cm)
ComplianceCSA C22.2 no. 113, UL 507.
