Broan**DISCONTINUED** NuTone® Remote InILF130

Broan Remote In-Line Exhaust Fan (In-Line Fans). Model ILF120, ILF130, ILF250. External rotor, ball bearing motor; Backward inclined centrifugal blower wheel; Suitable for use over tub or shower with GFCI protection; Not for use in cooking areas or wet locations. material: Polycarbonate plastic

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFILF130.pdfData sheet

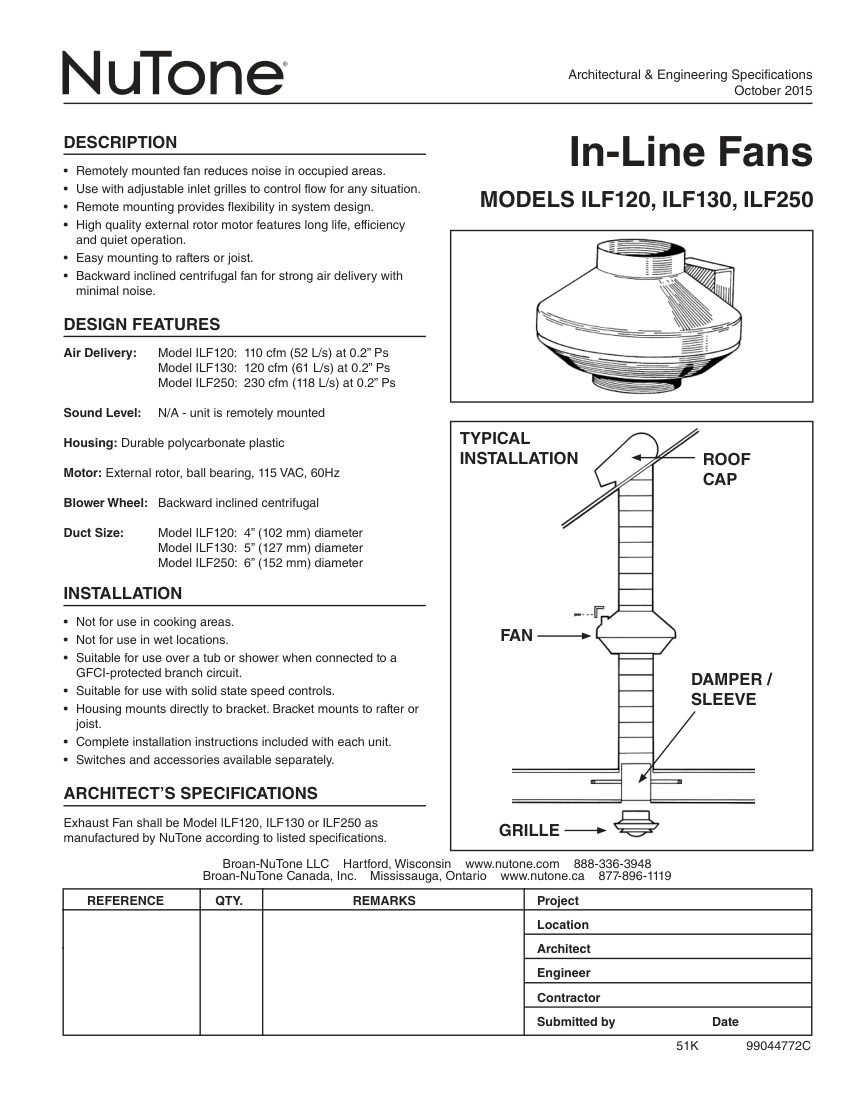

Broan ILF130 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
ILF130
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberILF130
DescriptionBroan Remote In-Line Exhaust Fan (In-Line Fans). Model ILF120, ILF130, ILF250. External rotor, ball bearing motor; Backward inclined centrifugal blower wheel; Suitable for use over tub or shower with GFCI protection; Not for use in cooking areas or wet locations. material: Polycarbonate plastic
Connection size4" (102 mm), 5" (127 mm), or 6" (152 mm) diameter
Pressure Rating0.2" Ps
Flow Rate110 cfm (52 L/s), 120 cfm (61 L/s), or 230 cfm (118 L/s)
MountingRemote mounting to rafters or joists
ComplianceHVI-2100 Certified.

Also cataloged as: ILF120, ILF250, ILFK120, ILFK130, ILFK250, ILFK2502
