BroanBroanL100E

Broan Ceiling Mount Ventilator (Ventilators). Model L100E, L150E, L200E, L250E, L300E. Light Commercial Energy Star Certified; Galvanized steel housing with 1/2" acoustic insulation; Dynamically balanced centrifugal blower wheel; Automatic backdraft damper included. material: 20 gauge galvanized steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFL100E.pdfData sheet

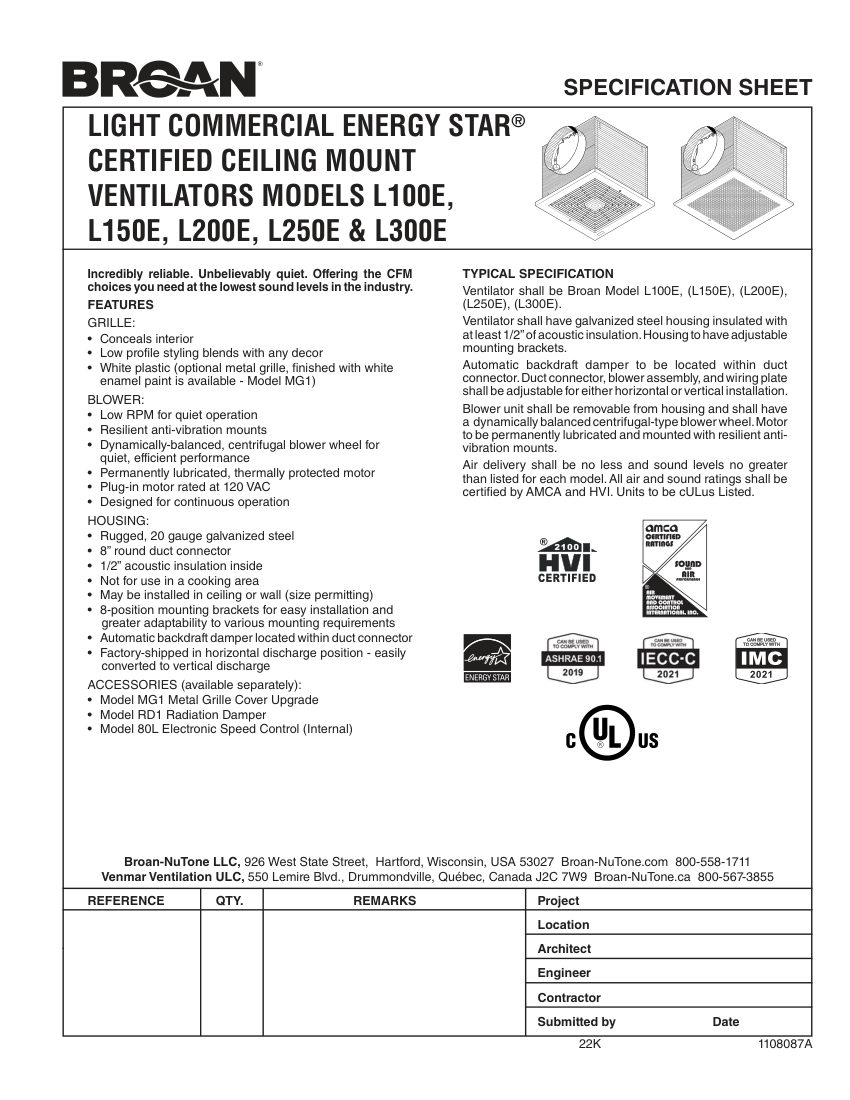

Broan L100E cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
L100E
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberL100E
DescriptionBroan Ceiling Mount Ventilator (Ventilators). Model L100E, L150E, L200E, L250E, L300E. Light Commercial Energy Star Certified; Galvanized steel housing with 1/2" acoustic insulation; Dynamically balanced centrifugal blower wheel; Automatic backdraft damper included. material: 20 gauge galvanized steel
Connection size8" round duct connector
End connectionDuct connector
Flow Rate164-296 CFM (varies by model and static pressure)
FinishWhite plastic grille (optional white enamel metal grille)
MountingCeiling or wall, 8-position adjustable brackets.

Also cataloged as: L200E, L250E, L300E, L150E
