Broan In-line ventilator (In-Line Ventilators). Model L100EL, L150EL, L200EL, L250EL, L300EL. Dynamically-balanced centrifugal blower wheel; Permanently lubricated, thermally protected motor; Automatic backdraft damper included; Resilient anti-vibration mounts. material: 20 gauge galvanized steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFL100EL.pdfData sheet

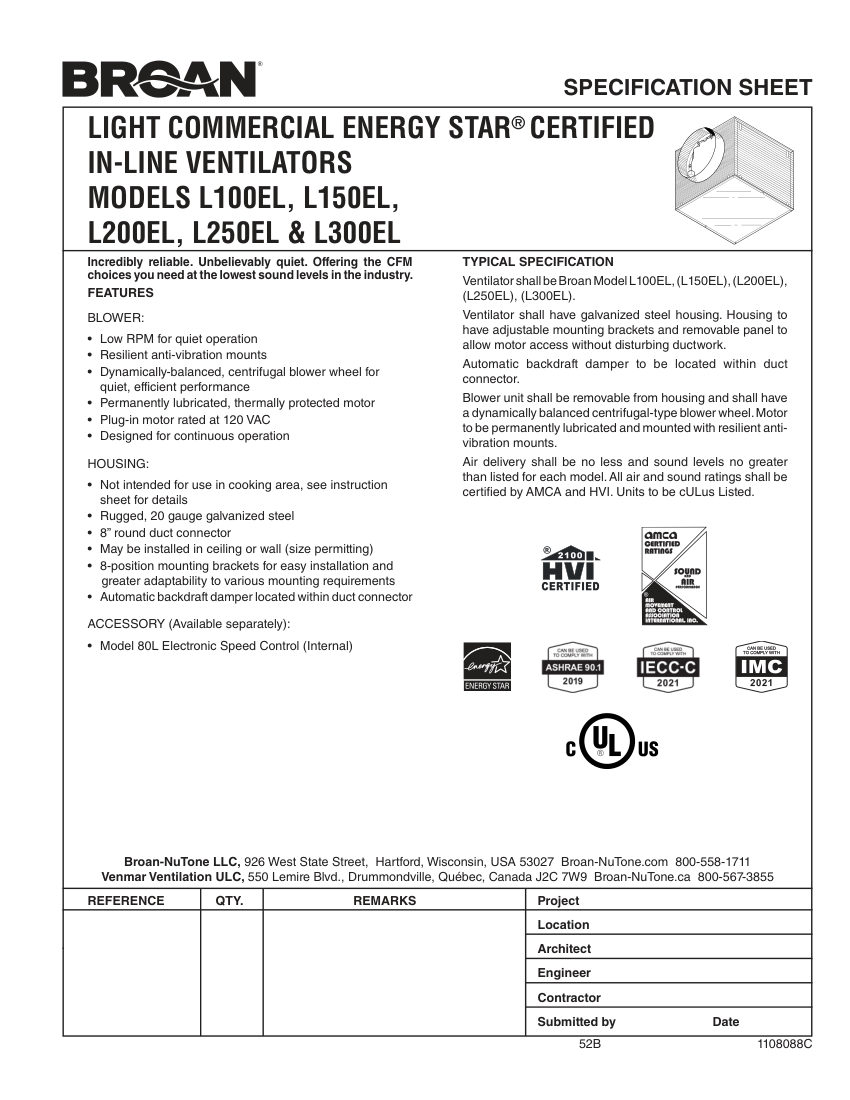

Broan L100EL cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
L100EL
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberL100EL
DescriptionBroan In-line ventilator (In-Line Ventilators). Model L100EL, L150EL, L200EL, L250EL, L300EL. Dynamically-balanced centrifugal blower wheel; Permanently lubricated, thermally protected motor; Automatic backdraft damper included; Resilient anti-vibration mounts. material: 20 gauge galvanized steel
Connection size8" round duct connector
End connectionDucted inlet, Ducted outlet
Flow Rate148-296 CFM (depending on model)
Mounting8-position adjustable brackets, ceiling or wall
ComplianceENERGY STAR, AMCA, HVI, cULus.

Also cataloged as: L150EL, L200EL, L250EL, L300EL
