BroanL100L

Broan In-line ventilation fan (Ventilation). Model L100L, L150L. Galvanized steel housing with removable panel; Polymeric, dynamically balanced centrifugal blower wheel; Permanently lubricated, thermally protected motor; Automatic backdraft damper included. material: 20 gauge galvanized steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFL100L.pdfData sheet

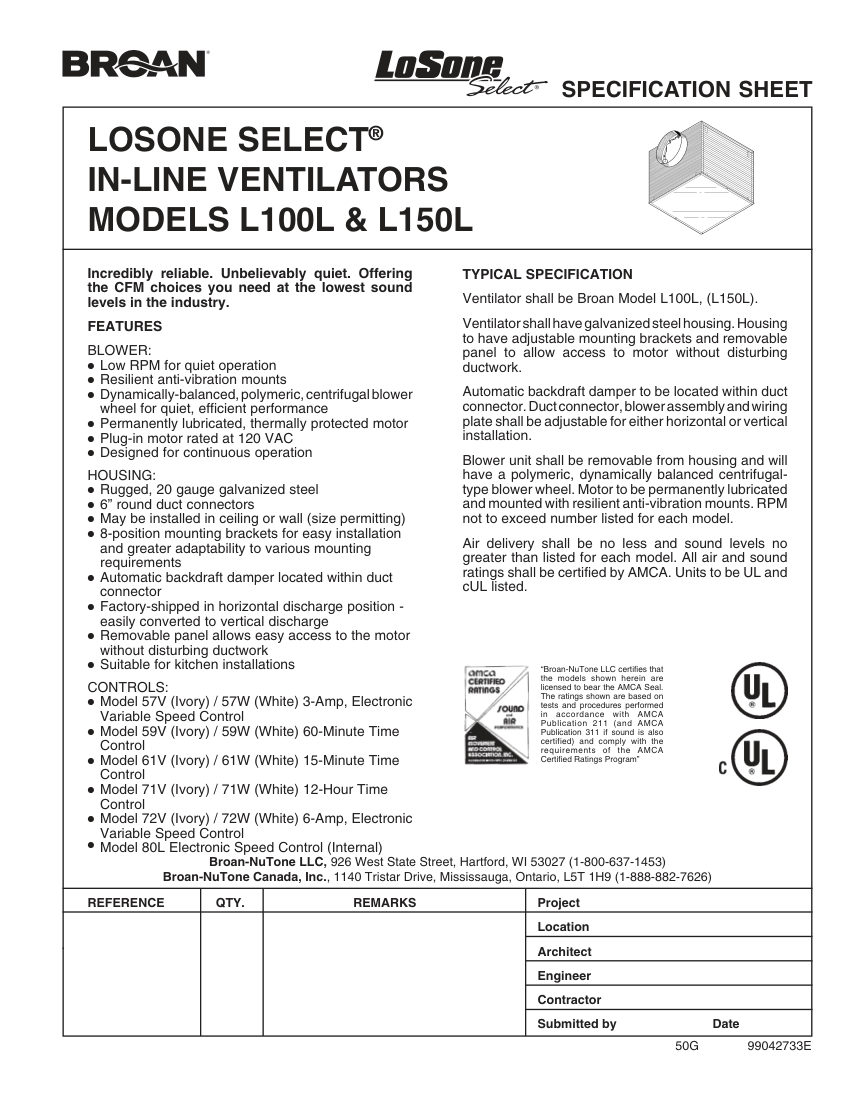

Broan L100L cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
L100L
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberL100L
DescriptionBroan In-line ventilation fan (Ventilation). Model L100L, L150L. Galvanized steel housing with removable panel; Polymeric, dynamically balanced centrifugal blower wheel; Permanently lubricated, thermally protected motor; Automatic backdraft damper included. material: 20 gauge galvanized steel
Connection size6" round
End connectionRound duct connectors
Flow Rate106 CFM (L100L Straight Through), 95 CFM (L100L Right Angle), 147 CFM (L150L Straight Through), 137 CFM (L150L Right Angle)
MountingAdjustable brackets, ceiling or wall
ComplianceAMCA, UL, cUL.

Also cataloged as: L150L
