BroanL100MG

Broan Ceiling Mount Ventilation Fan. Model L100. 115 CFM airflow at 0.1 in. w.c. static pressure; 0.9 Sones sound level at 0.1 in. w.c. static pressure; Galvanized steel housing with 1/2" acoustic insulation; Polymeric, dynamically balanced centrifugal blower wheel. material: Galvanized steel housing, polymeric blower wheel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFL100MG.pdfData sheet

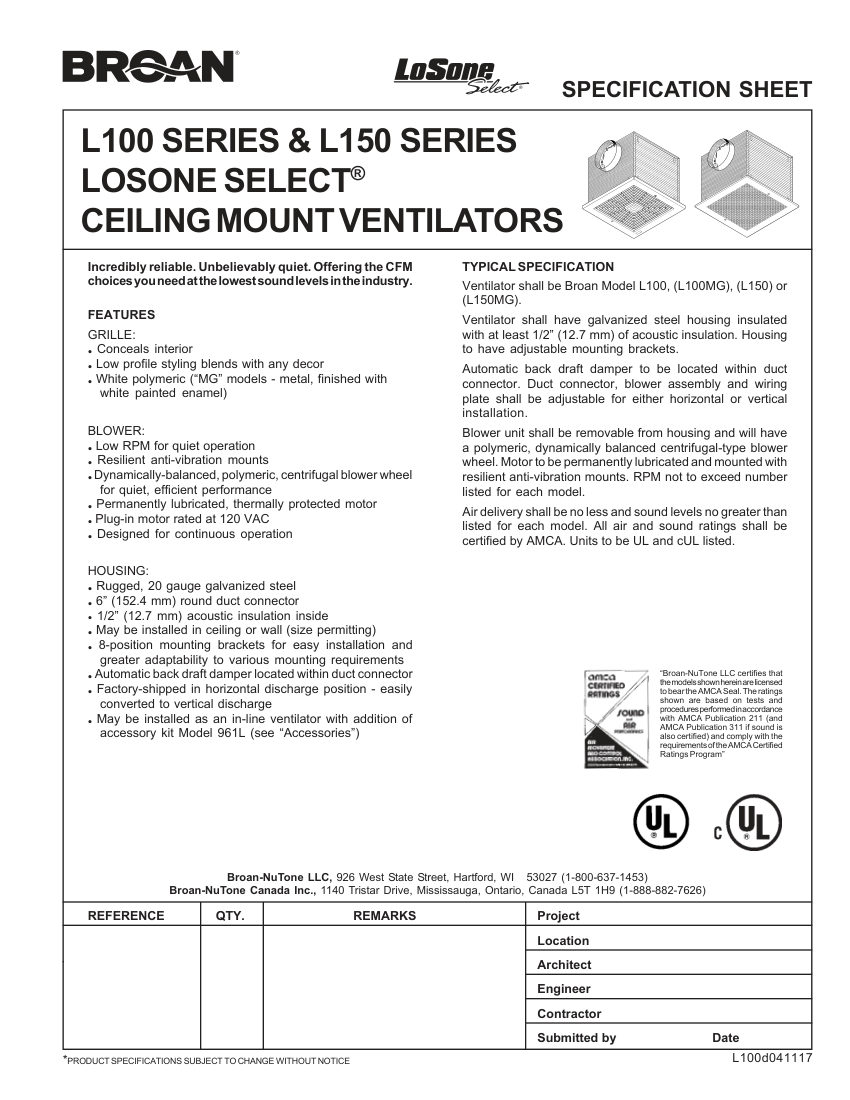

Broan L100MG cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
L100MG
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberL100MG
DescriptionBroan Ceiling Mount Ventilation Fan. Model L100. 115 CFM airflow at 0.1 in. w.c. static pressure; 0.9 Sones sound level at 0.1 in. w.c. static pressure; Galvanized steel housing with 1/2" acoustic insulation; Polymeric, dynamically balanced centrifugal blower wheel. material: Galvanized steel housing, polymeric blower wheel
Connection size6" (152.4 mm) round duct connector
End connectionRound duct connector
Flow Rate115 CFM (54.3 L/s) at 0.1 in. w.c.
FinishWhite polymeric grille (MG models: metal with white painted enamel)
MountingCeiling or wall, horizontal or vertical, 8-position
