DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanL1500L

Broan In-line ventilation fan (Ventilation). Model L900L, L1500L. Galvanized steel housing with automatic backdraft damper; Dynamically-balanced polymeric centrifugal blower wheel; Permanently lubricated, thermally protected motor

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFL1500L.pdfData sheet

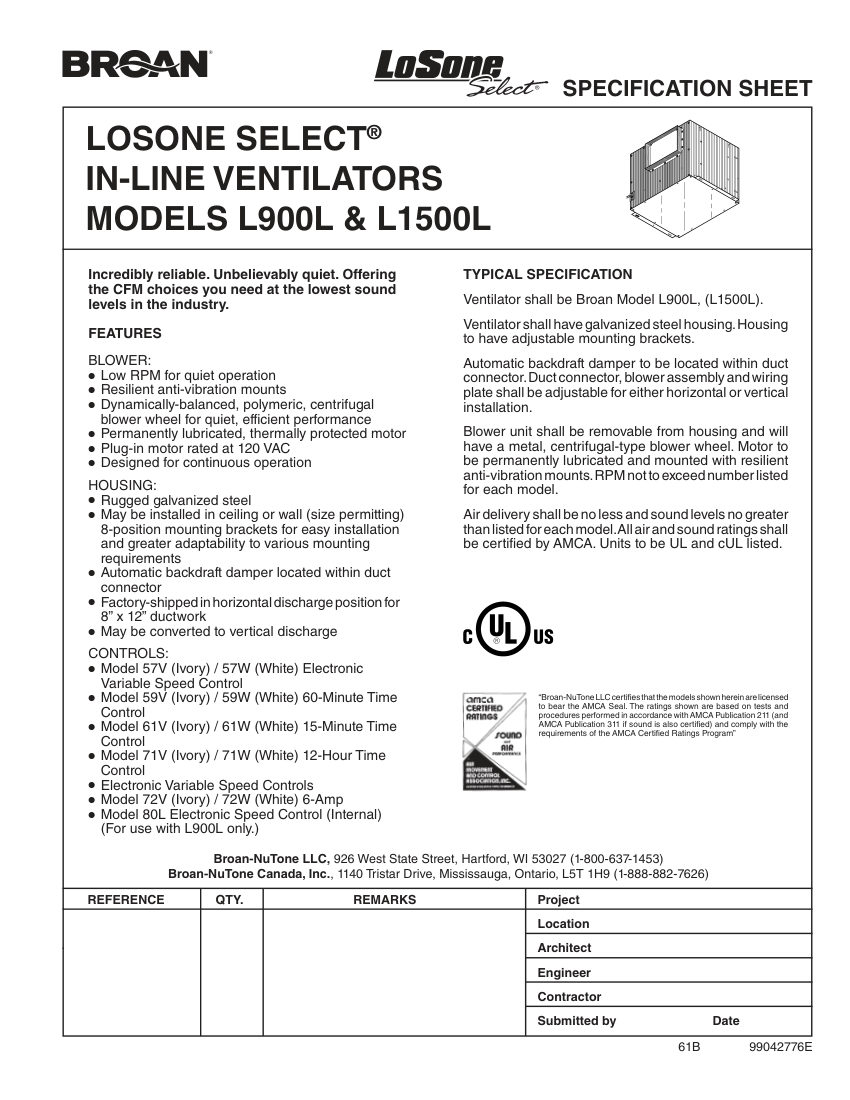

Broan L1500L cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
L1500L
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberL1500L
DescriptionBroan In-line ventilation fan (Ventilation). Model L900L, L1500L. Galvanized steel housing with automatic backdraft damper; Dynamically-balanced polymeric centrifugal blower wheel; Permanently lubricated, thermally protected motor
L900L3.7 Sones (St.Thr.) at 0.0" Ps. material: Galvanized steel
Connection size8" x 12" ductwork
End connectionDuct connector
Flow RateL900L: 930 CFM (St.Thr.), 795 CFM (Rt.Ang.)
L1500L1275 CFM (St.Thr.), 1160 CFM (Rt.Ang.)
Mounting8-position adjustable brackets, horizontal or vertical
ComplianceAMCA Certified, UL, cUL.

Also cataloged as: L900L
