BroanBroan® LOSONE SELECT™ 210 CFM High Capacity Ventilation FanL200

Broan ceiling mount ventilation fan (Broan LOSONE SELECT). Model L200, L250, L300, L300KMG. 20 gauge galvanized steel housing with 1/2" acoustic insulation; Dynamically-balanced polymeric centrifugal blower wheel; Permanently lubricated, thermally protected motor; Automatic backdraft damper located within duct connector. material: 20 gauge galvanized steel housing, polymeric blower wheel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFL200.pdfData sheet

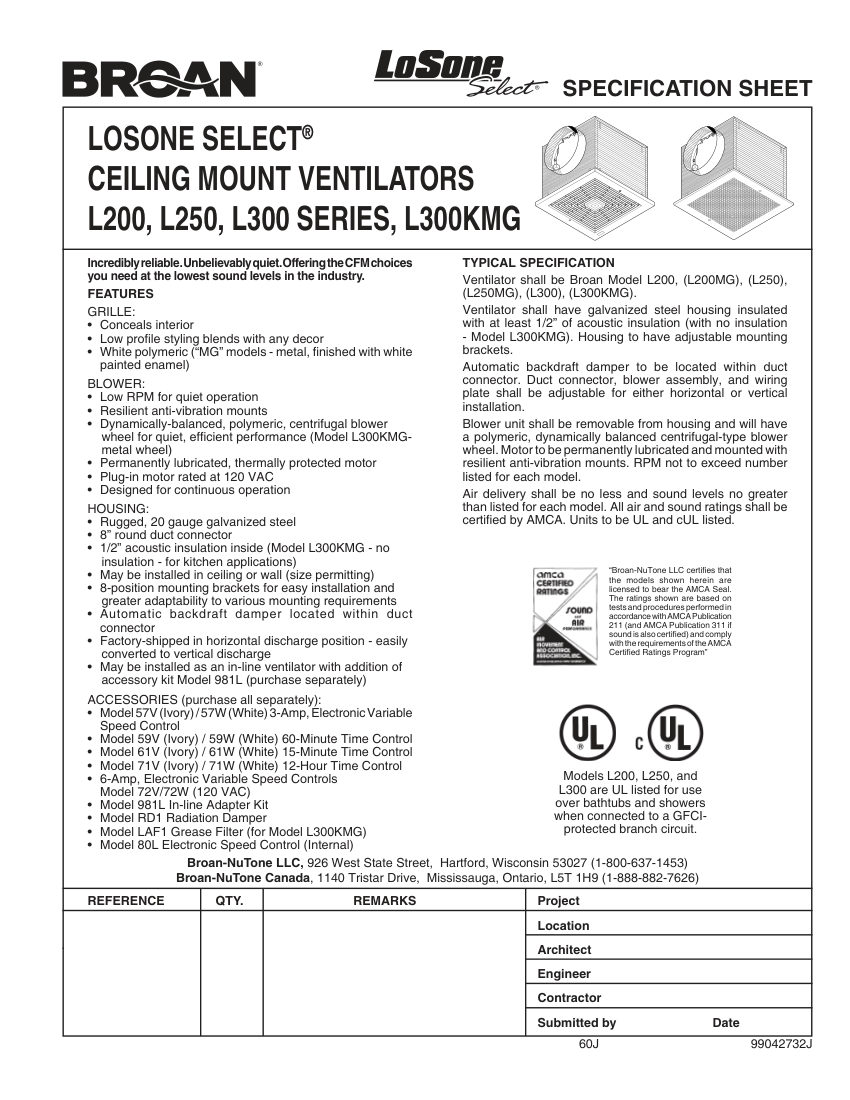

Broan L200 cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
L200
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberL200
DescriptionBroan ceiling mount ventilation fan (Broan LOSONE SELECT). Model L200, L250, L300, L300KMG. 20 gauge galvanized steel housing with 1/2" acoustic insulation; Dynamically-balanced polymeric centrifugal blower wheel; Permanently lubricated, thermally protected motor; Automatic backdraft damper located within duct connector. material: 20 gauge galvanized steel housing, polymeric blower wheel
Connection size8" round duct connector
End connection8" round duct
Flow Rate210-231 CFM (L200 model)
FinishWhite polymeric or white painted enamel (MG models)
MountingCeiling or wall, 8-position ad

Also cataloged as: L200MG, L250MG, L300KMG, L300MG, L300
