DIV 23 · HVACVENTILATIONCUT SHEET INDEXED

BroanL400KL

Broan In-line ventilation fan (Ventilation). Model L400L, L400KL, L500L, L500KL, L700L. Galvanized steel housing with removable panel for motor access; Balanced polymeric or metal centrifugal blower wheel; Permanently lubricated, thermally protected motor; Automatic backdraft damper located within duct connector. material: Galvanized steel housing

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFL400KL.pdfData sheet

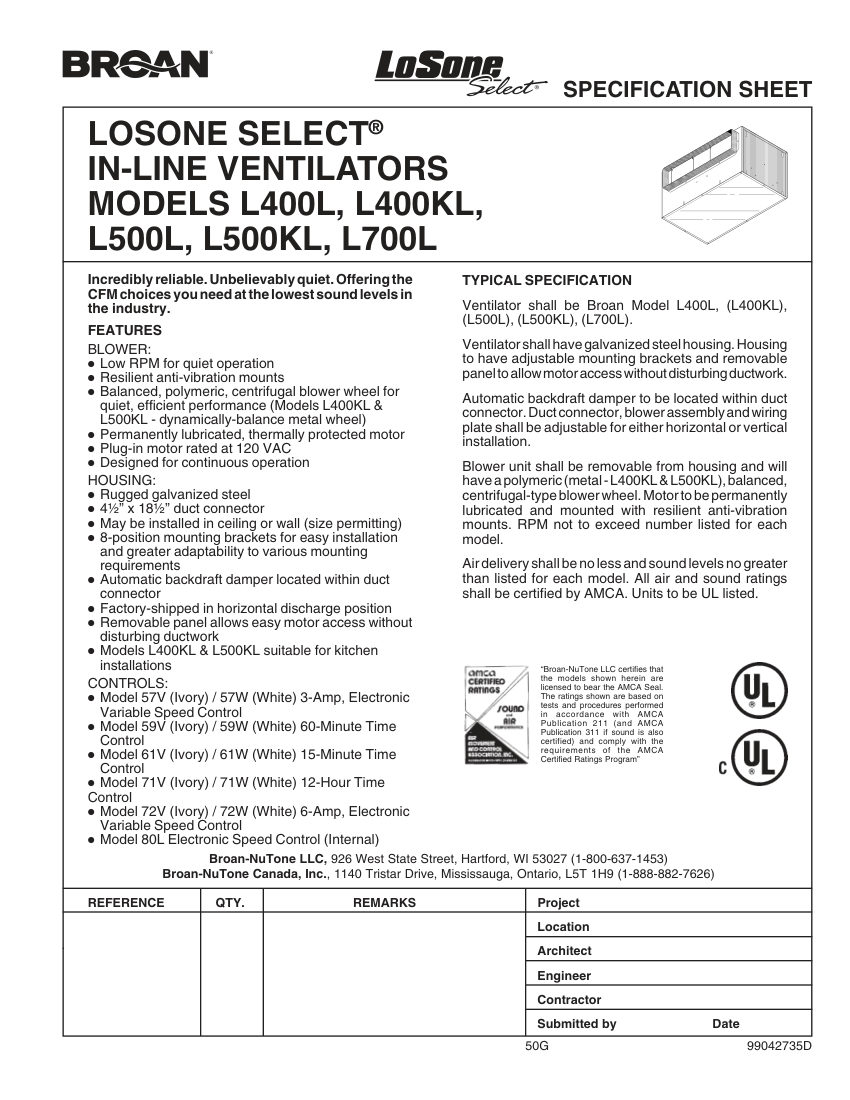

Broan L400KL cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Broan
Catalog no.
L400KL
Product type
Ventilation
MasterFormat
23
Cut sheet
PDF · manufacturer current

Product details

Catalog numberL400KL
DescriptionBroan In-line ventilation fan (Ventilation). Model L400L, L400KL, L500L, L500KL, L700L. Galvanized steel housing with removable panel for motor access; Balanced polymeric or metal centrifugal blower wheel; Permanently lubricated, thermally protected motor; Automatic backdraft damper located within duct connector. material: Galvanized steel housing
Connection size4.5" x 18.5" duct connector
End connectionDuct connector
Flow Rate375-380 CFM (L400L); up to 546 CFM (L500L)
Mounting8-position adjustable brackets; ceiling or wall
ComplianceAMCA Certified, UL Listed.

Also cataloged as: L500KL, L400L, L500L, L700L
